0310M-一字螺丝刀 Slotted Screwdriver -(Triangular Handle)
0310M-一字螺丝刀 Screwdriver- Slotted Tip (Triangular Handle)
- TOURNEVIS
- Śrubokręt
- Schraubendreher
- destornillador
- مفك براغي
- ไขควง
DIN-ISO 2380 -1/ -2
- ON STUBBY-STANDARD- EXTRA LONG
SLOTTED
| 0310M |  mm | inch | SHAFT LENGTH mm | OVERALL LENGTH mm |  g |  pcs |
|---|---|---|---|---|---|---|
| M2-3 | 2.5 | (3/32) | 75 | 145 | 20 | 12 |
| M3-3 | 3 | (1/8) | 75 | 148 | 22 | 12 |
| M4-4 | 4 | (5/32) | 100 | 173 | 30 | 12 |
| M5-3 | 5.5 | (3/16) | 75 | 179 | 58 | 12 |
| M5-4 | 5.5 | (3/16) | 100 | 204 | 61 | 12 |
| M6-4 | 6.5 | (1/4) | 100 | 215 | 88 | 12 |
| M6-5 | 6.5 | (1/4) | 125 | 234 | 100 | 12 |
| M6-6 | 6.5 | (1/4) | 150 | 265 | 98 | 12 |
| M8-6 | 8 | (5/16) | 150 | 275 | 148 | 6 |
| M8-7 | 8 | (5/16) | 175 | 294 | 157 | 6 |
| M8-8 | 8 | (5/16) | 200 | 325 | 167 | 6 |
| M10-8 | 10 | (3/8) | 200 | 325 | 172 | 6 |
| M12-8 | 12 | (15/32) | 200 | 325 | 180 | 6 |

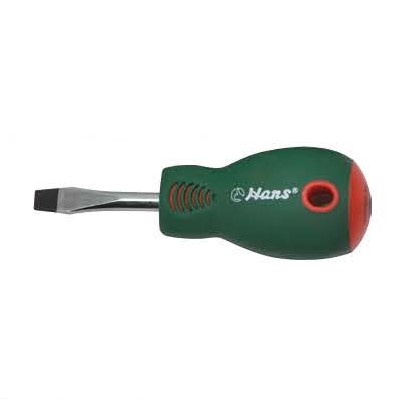

STUBBY
| 0310M | mm | inch | SHAFT LENGTH mm | OVERALL LENGTH mm | g | pcs |
|---|---|---|---|---|---|---|
| M4-1 | 4 | (5/32) | 38 | 103 | 44 | 12 |
| M5-1 | 5.5 | (3/16) | 38 | 103 | 45 | 12 |
| M6-1 | 6.5 | (1/4) | 38 | 103 | 45 | 12 |

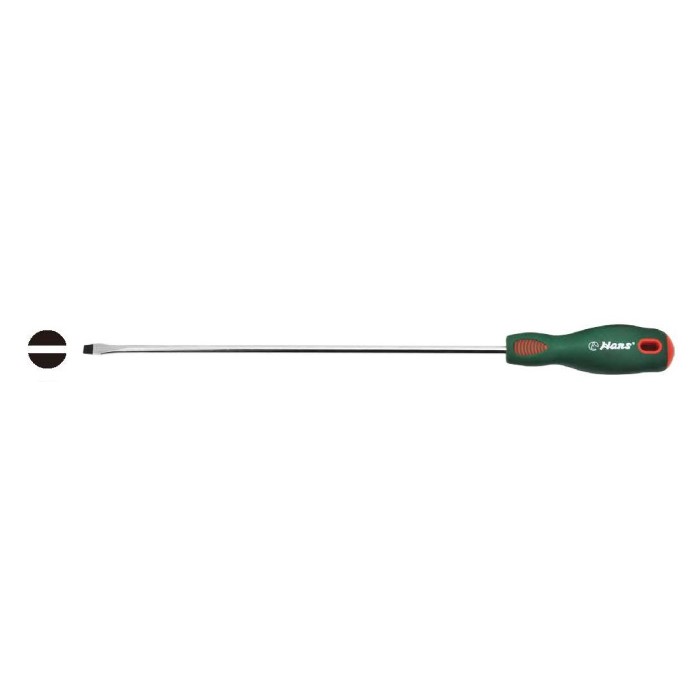

EXTRA LONG
| 0310M | mm | inch | SHAFT LENGTH mm | OVERALL LENGTH mm | g | pcs |
|---|---|---|---|---|---|---|
| M5-5 | 5.5 | (3/16) | 125 | 223 | 66 | 12 |
| M5-8 | 5.5 | (3/16) | 200 | 304 | 90 | 12 |
| M5-10 | 5.5 | (3/16) | 250 | 354 | 105 | 6 |
| M5-12 | 5.5 | (3/16) | 300 | 398 | 120 | 6 |
| M5-16 | 5.5 | (3/16) | 400 | 498 | 160 | 6 |
| M6-8 | 6.5 | (1/4) | 200 | 315 | 108 | 12 |
| M6-10 | 6.5 | (1/4) | 250 | 365 | 125 | 6 |
| M6-12 | 6.5 | (1/4) | 300 | 415 | 142 | 6 |
| M6-16 | 6.5 | (1/4) | 400 | 515 | 159 | 6 |
| M10-12 | 10 | (3/8) | 300 | 425 | 172 | 6 |
| M12-10 | 12 | (15/32) | 250 | 375 | 172 | 6 |
