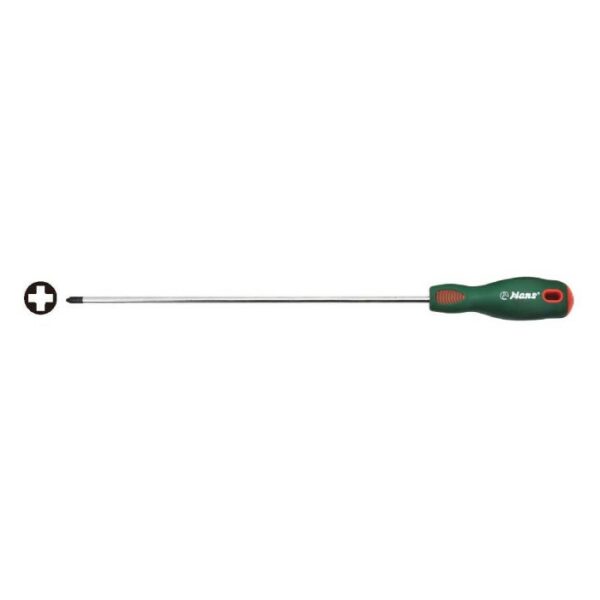

0320-十字螺丝刀 Screwdriver- Phillips Tip (Triangular Handle)
0320-十字螺丝刀 Screwdriver- Phillips Tip (Triangular Handle)
- TOURNEVIS
- Śrubokręt
- Schraubendreher
- destornillador
- مفك براغي
- ไขควง
- DIN-ISO 8764/ -1PH
- Available in STUBBY- STANDARD-EXTRA LONG
- Made by Material SNCMVH
- Handle Introduction-(Ratchet & Screwdriver)
PHILLIPS
| 0320 | SHAFT LENGTH mm | OVERALL LENGTH mm |  g |  pcs |
|---|---|---|---|---|
| PH0-3 | 75 | 145 | 22 | 12 |
| PH0-4 | 100 | 170 | 24 | 12 |
| PH1-3 | 75 | 173 | 30 | 12 |
| PH1-4 | 100 | 198 | 58 | 12 |
| PH1-8 | 200 | 304 | 90 | 12 |
| PH2-4 | 100 | 209 | 62 | 12 |
| PH2-5 | 125 | 240 | 72 | 12 |
| PH2-6 | 150 | 259 | 120 | 12 |
| PH2-8 | 200 | 309 | 130 | 12 |
| PH3-6 | 150 | 269 | 150 | 12 |
| PH3-8 | 200 | 319 | 160 | 6 |
| PH4-8 | 200 | 319 | 170 | 6 |
STUBBY
| 0320 | SHAFT LENGTH mm | OVERALL LENGTH mm | g | pcs |
|---|---|---|---|---|
| PH1-1 | 38 | 98 | 46 | 12 |
| PH2-1 | 38 | 98 | 51 | 12 |
EXTRA LONG
| 0320 | SHAFT LENGTH mm | OVERALL LENGTH mm | g | pcs |
|---|---|---|---|---|
| PH1-10 | 200 | 354 | 110 | 12 |
| PH1-12 | 300 | 404 | 120 | 12 |
| PH2-10 | 250 | 365 | 130 | 6 |
| PH2-12 | 300 | 415 | 146 | 6 |
| PH2-16 | 400 | 515 | 159 | 6 |
