1151M/A-德式轻薄柄双开口扳手 Double Open-End Wrench

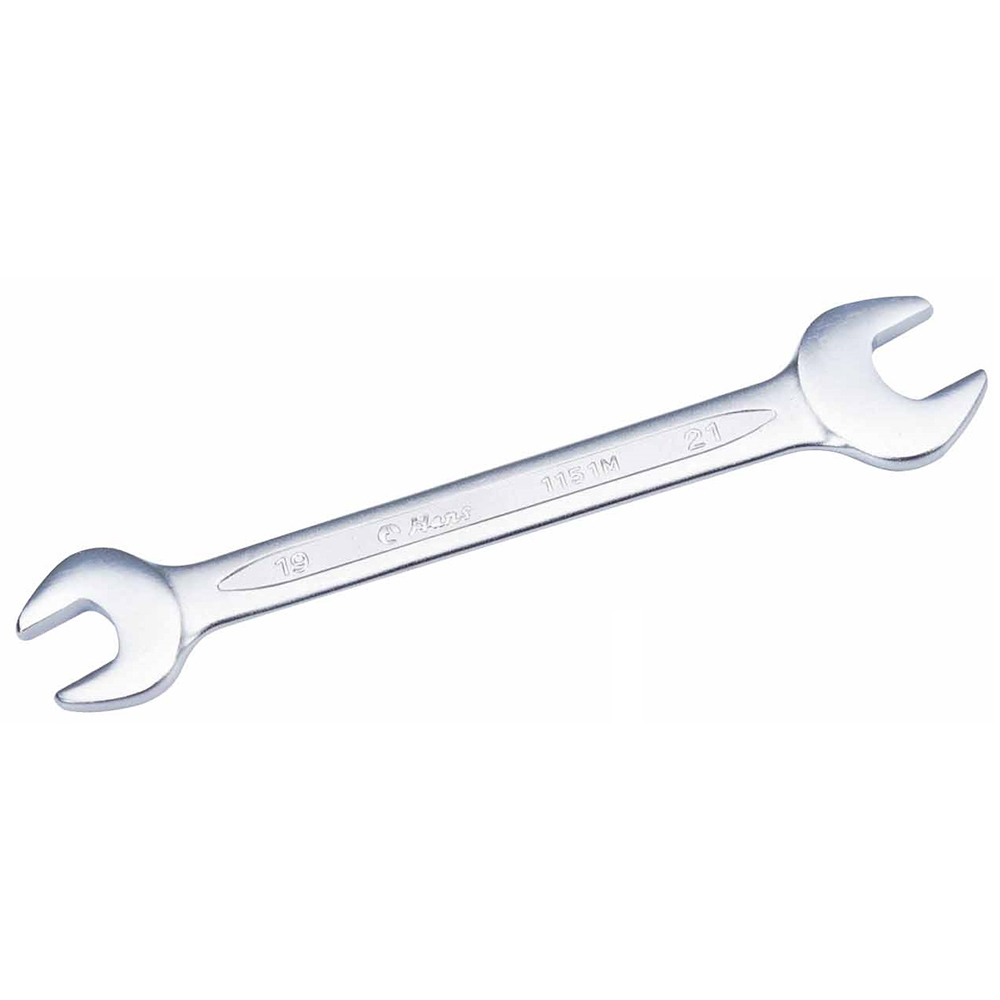

1151M/A-德式轻薄柄双开口扳手 Double Open-End Wrench- German Style
- Clés à fourches
- Podwójny klucz płaski
- Doppelmaulschlüssel
- Llaves fijas de dos bocas abiertas
- مفاتيح ربط مفتوحة الطرفين.
- ประแจปากตายคู่
- 雙開口扳手 德式輕薄柄
- DIN 3110- ISO 3318
- ISO 1085- ISO 10102
- An-Lock Drive® (Superb Torque) has one goal in mind and that is to help you get the job done right. With features like heads that reach tight spaces, serviceable reversing levers, and grips that prevent slippage, An-Lock makes it easier for you to get the job done faster and right.
| 1151M (mm) | W (mm) | W1 (mm) | T (mm) | L (mm) |  g |  pcs |
|---|---|---|---|---|---|---|
| 4x5 | 15.5 | 16.8 | 3.4 | 110 | 22 | 12 |
| 5x6 | 15.5 | 16.8 | 3.4 | 110 | 22 | 12 |
| 5.5x6 | 15.5 | 16.8 | 3.4 | 110 | 22 | 12 |
| 5.5x7 | 15.5 | 18 | 4.6 | 132 | 25 | 12 |
| 6x7 | 15.5 | 18 | 3.7 | 123 | 22.8 | 12 |
| 6x8 | 15.5 | 18 | 3.7 | 123 | 22.8 | 12 |
| 8x9 | 20.4 | 22.7 | 4 | 140 | 31.8 | 12 |
| 8x10 | 20.4 | 22.7 | 45 | 140 | 31.8 | 12 |
| 10x11 | 24.9 | 27.1 | 5 | 156 | 54.8 | 12 |
| 10x12 | 24.9 | 27.1 | 5 | 156 | 54.8 | 12 |
| 11x13 | 29.2 | 31.2 | 5.5 | 172 | 73.6 | 12 |
| 12x13 | 29.2 | 31.2 | 5.5 | 172 | 73.6 | 12 |
| 12x14 | 29.2 | 31.2 | 5.5 | 180 | 73.6 | 12 |
| 13x14 | 33.3 | 35.3 | 5.9 | 180 | 108.1 | 12 |
| 14x15 | 33.3 | 35.3 | 5.9 | 190 | 108.1 | 12 |
| 14x17 | 37.1 | 38.9 | 5.9 | 204 | 138 | 12 |
| 16x17 | 37.1 | 38.9 | 6.3 | 204 | 138 | 12 |
| 17x19 | 40.9 | 42.8 | 6.7 | 220 | 155 | 12 |
| 18x19 | 40.9 | 42.8 | 6.7 | 220 | 168.1 | 12 |
| 18x21 | 44.8 | 48.8 | 7.1 | 237 | 211 | 12 |
| 19x21 | 44.8 | 48.8 | 7.1 | 237 | 211 | 12 |
| 19x22 | 44.8 | 48.8 | 7.1 | 237 | 211 | 12 |
| 20x22 | 44.8 | 48.8 | 7.1 | 237 | 211 | 12 |
| 21x22 | 44.8 | 48.8 | 7.1 | 237 | 211 | 12 |
| 21x23 | 46.8 | 50.8 | 7.7 | 247 | 238 | 12 |
| 22x24 | 46.8 | 50.8 | 7.7 | 247 | 238 | 12 |
| 23x26 | 51.2 | 56.8 | 8 | 255 | 316 | 12 |
| 24x26 | 51.2 | 56.8 | 8 | 255 | 316 | 12 |
| 24x27 | 51.2 | 61.3 | 8 | 263 | 316 | 12 |
| 25x28 | 54.8 | 69.8 | 8.5 | 279 | 350 | 6 |
| 27x29 | 65.4 | 69.8 | 9 | 283 | 495 | 6 |
| 27x32 | 65.4 | 69.8 | 9 | 289 | 495 | 6 |
| 30x32 | 65.4 | 69.8 | 9 | 298 | 495 | 6 |
| 30x34 | 69 | 76 | 10.5 | 350 | 600 | 6 |
| 32x34 | 69 | 76 | 10.5 | 350 | 600 | 6 |
| 32x36 | 69 | 76 | 10.5 | 350 | 612 | 6 |
| 34x36 | 69.8 | 76 | 10.5 | 350 | 612 | 6 |
| 35x38 | 76 | 87 | 12 | 380 | 700 | 6 |
| 38x42 | 76 | 87 | 12 | 380 | 700 | 6 |
| 36x41 | 76 | 87 | 12 | 380 | 700 | 6 |
| 41x46 | 86 | 95 | 15 | 415 | 823 | 6 |
| 46x50 | 95 | 104 | 16 | 465 | 960 | 6 |
| 1151A (inch) | W (mm) | W1 (mm) | T (mm) | L (mm) | g | pcs |
|---|---|---|---|---|---|---|
| 1/4x5/16 | 15.5 | 18 | 3.7 | 123 | 22.8 | 12 |
| 5/16x3/8 | 20.4 | 22.7 | 4 | 140 | 31.8 | 12 |
| 3/8x7/16 | 24.9 | 27.1 | 5 | 156 | 54.8 | 12 |
| 7/16x1/2 | 29.2 | 31.2 | 5.5 | 172 | 73.6 | 12 |
| 1/2x9/16 | 33.3 | 35.3 | 5.9 | 180 | 108.1 | 12 |
| 9/16x5/8 | 33.3 | 35.3 | 5.9 | 190 | 108.4 | 12 |
| 19/32x11/16 | 37.1 | 38.9 | 6.3 | 204 | 138 | 12 |
| 5/8x11/16 | 37.1 | 38.9 | 6.3 | 204 | 138 | 12 |
| 5/8x3/4 | 40.9 | 42.8 | 6.7 | 210 | 155 | 12 |
| 11/16x3/4 | 40.9 | 42.8 | 6.7 | 220 | 155 | 12 |
| 3/4x25/32 | 44.8 | 48.8 | 7.1 | 237 | 211 | 12 |
| 3/4x7/8 | 44.8 | 48.8 | 7.1 | 237 | 211 | 12 |
| 13/16x7/8 | 44.8 | 48.8 | 7.1 | 237 | 211 | 12 |
| 7/8x15/16 | 46.8 | 50.8 | 7.7 | 247 | 238 | 12 |
| 7/8x1-1/16 | 51.2 | 56.8 | 8 | 255 | 316 | 12 |
| 15/16x1" | 51.2 | 56.8 | 8 | 255 | 316 | 12 |
| 15/16x1-1/8 | 51.2 | 56.8 | 8 | 263 | 316 | 12 |
| 1"x1-1/8 | 54.8 | 61.3 | 8.5 | 279 | 350 | 6 |
| 1-1/8x1-1/4 | 65.4 | 69.8 | 9 | 298 | 495 | 6 |
| 1-1/4x1-7/16 | 69 | 76 | 10.5 | 350 | 612 | 6 |
| 1-7/16x1-5/8 | 76 | 87 | 12 | 380 | 700 | 6 |
| 1-13/16x2" | 95 | 104 | 16 | 465 | 960 | 6 |
