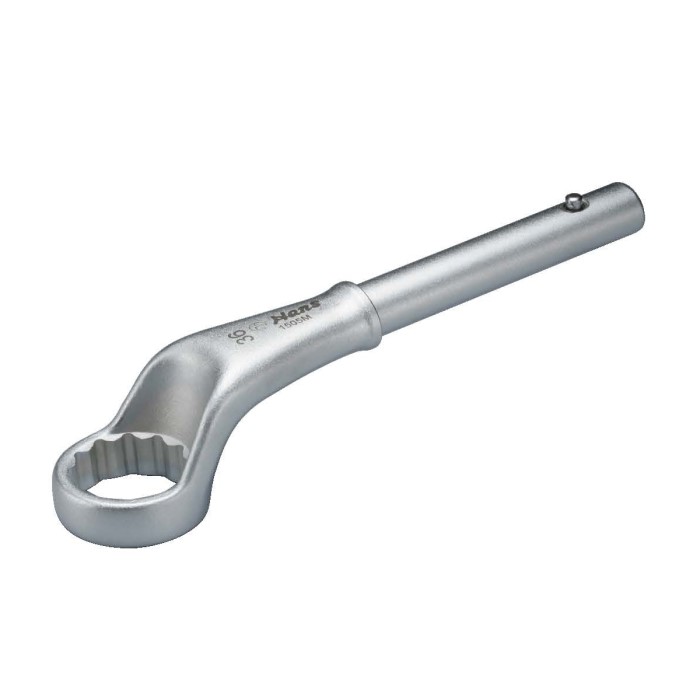

1505-70°单梅花扳手 Single Ring Wrench-70° Offset
1505- 70°敲击单梅花扳手 Single Ring Wrench-70° Offset
- Clés polygonales contre coudées
- Klucz oczkowy do pobijania
- Schlagringschlüssel
- Llaves estrella de contra acodadas
- وجع حلقة الضرب
- ประแจแหวนบุ้งกี๋
- 70°單梅花扳手
- An-Lock Drive® (Superb Torque)

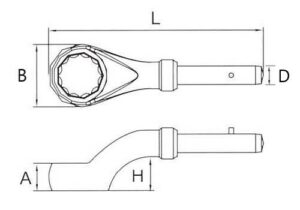

| 1505 mm | A mm | B mm | D mm | H mm | L mm |  g |
|---|---|---|---|---|---|---|
| 24 | 17 | 38 | 18.3 | 29 | 180 | 350 |
| 27 | 17 | 41.5 | 18.3 | 31.5 | 190 | 400 |
| 30 | 18 | 48 | 18.3 | 33 | 200 | 450 |
| 32 | 18 | 49 | 21.3 | 34 | 235 | 550 |
| 36 | 20 | 55 | 21.3 | 35 | 245 | 650 |
| 38 | 20 | 55 | 21.3 | 35 | 245 | 650 |
| 41 | 22 | 62 | 21.3 | 39 | 265 | 750 |
| 46 | 23 | 69 | 24.1 | 40 | 280 | 1050 |
| 50 | 25.5 | 76 | 24.1 | 42 | 290 | 1150 |
| 55 | 28 | 81 | 24.1 | 45 | 300 | 1400 |
| 60 | 30.5 | 90 | 29.1 | 49 | 345 | 2100 |
| 65 | 33 | 98 | 29.1 | 53 | 355 | 2300 |
