5410 F夹钳 F-Clamp
5410 F夹钳 F-Clamp
- F-Clamp
- Serre-joint a vis
- Klips mocujący
- Befestigungsclip
- Sargentos de apriete
- مشبك التثبيت
- คลิปหนีบ
- F-夾鉗
Information

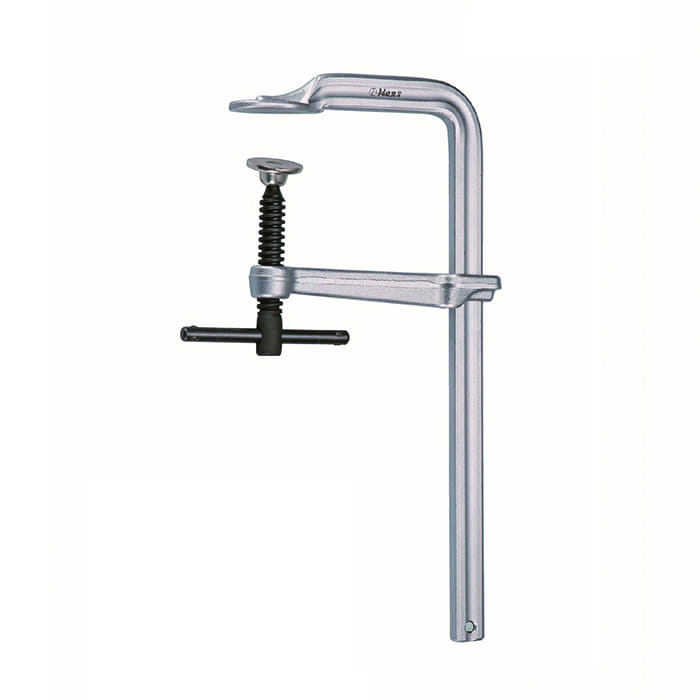

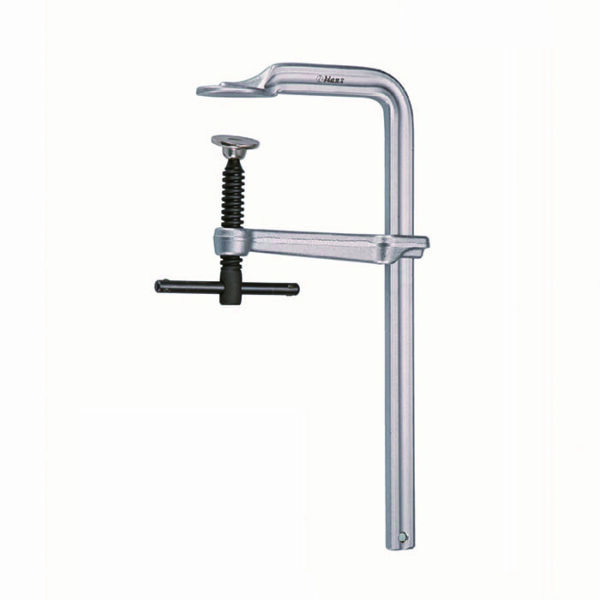

F-clamp is designed in the shape of a letter ‘F’. The tool consists of one long, vertical bar and two horizontal jaws.

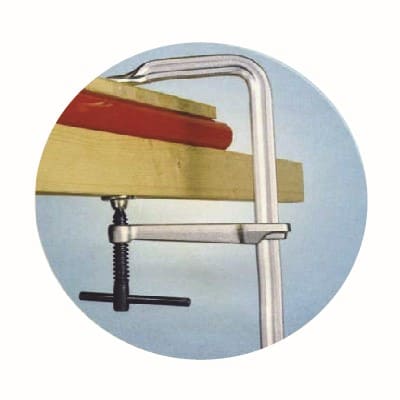

F-clamp is similar to a C-clamp in use, but has a wider opening capacity (throat). This tool is often used in woodworking while more permanent attachment is made with screws or glue, or in metalworking to hold pieces together while they are welded or bolted.
SIZE | SPANDxDEPTH mm | RAIL mm | PRESSURE kg | ![]() g | ![]() pcs |
---|---|---|---|---|---|
M3-6 | 160x80 | 16x7.5 | 250 | 500 | 1 |
M4-8 | 200x100 | 19.5x9.5 | 400 | 880 | 1 |
M5-10 | 250x120 | 22x10.5 | 550 | 1230 | 1 |
M5-12 | 300x120 | 25x12 | 650 | 1780 | 1 |
M5.5-12 | 300x140 | 25x12 | 750 | 1850 | 1 |
M5-16 | 400x120 | 25x12 | 750 | 2570 | 1 |
M5-20 | 500x120 | 25x12 | 750 | 2120 | 1 |
M5-24 | 600x120 | 25x12 | 750 | 2330 | 1 |
M5-32 | 800x120 | 27x13 | 850 | 3260 | 1 |
M5-40 | 1000x120 | 27x13 | 850 | 3750 | 1 |
M5-50 | 1250x120 | 27x13 | 850 | 4360 | 1 |
M5-60 | 1500x120 | 27x13 | 850 | 4980 | 1 |
M7-16 | 400x175 | 27x13 | 700 | 2570 | 1 |
M7-24 | 600x175 | 27x13 | 700 | 3060 | 1 |
M7-32 | 800x175 | 27x13 | 700 | 3550 | 1 |
M7-40 | 1000x175 | 27x13 | 700 | 4004 | 1 |
