64R0M-大R角手动套筒 Surface Hand Socket (Manual)- 3/4″ Drive

大R角手动套筒 SURFACE DRIVE HAND SOCKET- 3/4″ DRIVE (MANUAL)

  • vasos de surface drive
  • statki z napędem powierzchniowym
  • Oberflächenantriebsschiffe
  • buques de superficie
  • سفن محرك السطح
  • เรือขับเคลื่อนพื้นผิว
  • 大R角手動套筒
  • DIN 3120, ISO 1174
  • MS 33787, MIL-W-8982

Feature

  • Surface Drive sockets are designed to ensure that contact is not lost between the socket and the flat surfaces of the nut when it most matters: when you’re trying to apply maximum torque (and turn off the engine). Since they were first developed, they have been further refined by removing their protruding stem, lowering their profile even more.
  • Compared to a flat drive, surface drives make contact with the nut at the center of the bolt, reducing damage and boosting efficiency. Surface drives are also useful for painted face nuts or any nut made of soft material, as well as bolts or nuts that have been damaged by corrosion or wear and tear.
  • Compared to traditional Torx® and square head bolts, Hex Cap Screws are bigger and easier to handle. They are also more cost-effective, with the ability to hold most of the jobs it is assigned.

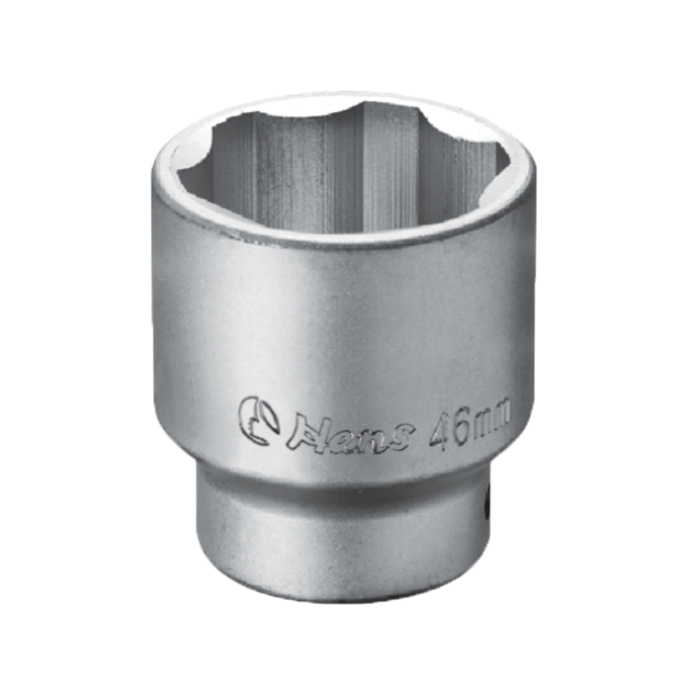

Hand socket image

64R0M SURFACE DRIVE SOCKET

64R0M
(mm)
D1
(mm)
D2
(mm)
L
(mm)

g

pcs
17283649.52705
19303649.52805
21323649.52805
22333649.52905
23343649.53005
24353649.53005
253636503105
263736503205
273836523305
283936523305
294038523405
304238543705
324438564205
334638564405
344638584705
354842584905
365042585105
385245605505
405645645805
415645645905
425645646005
466248687301
486548717701
506848727901

Dimension

64R0M

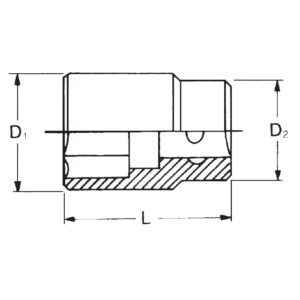

Profile of SURFACE DRIVE SOCKET

The Drive  socket makes use of an innovative design that results in almost twice the contact of a standard flat-topped socket. This helps it transmit more torque at a fraction of the weight and cost. Additionally, this new design also helps protect against rounding of fasteners caused by repeated use of conventional sockets, helping you save on overall maintenance costs.

Surface drive hand socket
