86111-工业级风动冲击扳手 超大出力 3/4″方头 双锤装置结构 Air Impact Wrench (Heavy Duty)- 3/4″ Drive
86111-工业级风动冲击扳手 超大出力 3/4″方头 双锤装置结构 Air Impact Wrench (Heavy Duty)- 3/4″ Drive
- 3/4″ Drive Air Impact Wrench (Heavy Duty)- Aluminum Cover
- Clé à chocs à air
- Klucz udarowy pneumatyczny
- Druckluft-Schlagschrauber
- Llave de impacto
- تأثير وجع الهواء
- ประแจผลกระทบอากาศ
- 工業級氣動衝擊扳手 超大出力 3/4″方頭
- 雙鎚裝置結構, Twin-Hammer 铝制机身(壳)
- Impact Wrench- Pneumatic Power Instruction
ITEM NO. | DRIVE | ANVIL inch(mm) | MAX TORQUE FT · LB(Nm) @ 5 SEC | MINI TORQUE FT · LB(Nm) | STDBOLT SIZE inch(mm) | FREE SPEED R.P.M. | MECHANISM |
---|---|---|---|---|---|---|---|
86110 | 1.3" (33) | 750 (1017) | 100-700 (136-949) | M22 | 6300 | NEW TWIN HAMMER |
|
86110-2 | 3.3" (85) | 750 (1017) | 100-700 (136-949) | M22 | 6300 | NEW TWIN HAMMER |
|

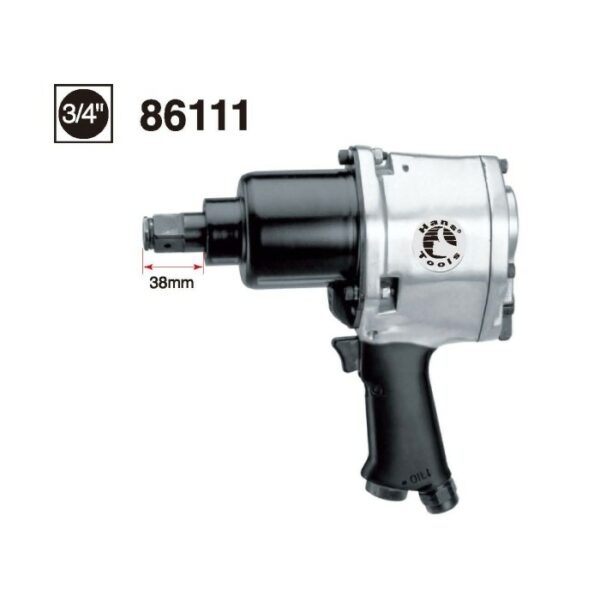

86111 | 1.5" (38) | 800 (1085) | 150-650 (203-881) | M24 | 6500 | NEW TWIN HAMMER |
|

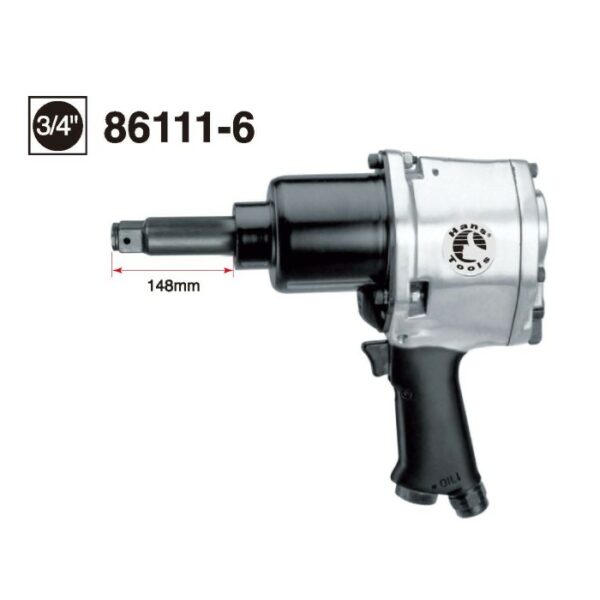

86111-6 | 5.82" (148) | 800 (1085) | 150-650 (203-881) | M24 | 6500 | NEW TWIN HAMMER |
|
86113 | 1.45" (36.78) | 1000 (1356) | 200-800 (271-1085) | M26 | 6700 | NEW TWIN HAMMER |
|
86113-6 | 5.81" (147.7) | 1000 (1356) | 200-800 (271-1085) | M26 | 6700 | NEW TWIN HAMMER |
EXHAUST | AVG.DLR CONSUMPTION CFM | AIR PRESSURE BAR(PSI) | AIR INLET inch | AIR HOSE ID | OVERALL LENGTH inch(mm) | KGS | pcs |
---|---|---|---|---|---|---|---|
HANDLE W/MUFFLER | 5.9 | 6.2(90) | 1/4 | 3/8 | 8.6"(218) | 3 | 8 |
HANDLE W/MUFFLER | 5.9 | 6.2(90) | 1/4 | 3/8 | 10.6"(269) | 3.2 | 8 |
FRONT | 7 | 6.2(90) | 1/4 | 3/8 | 9.3"(236) | 4.55 | 4 |
FRONT | 7 | 6.2(90) | 1/4 | 3/8 | 15.5"(393) | 6.13 | 4 |
HANDLE W/MUFFLER | 7 | 6.2(90) | 1/4 | 3/8 | 9.2"(234) | 4.75 | 4 |
HANDLE W/MUFFLER | 7 | 6.2(90) | 1/4 | 3/8 | 15.4"(391) | 6.33 | 4 |
