风动套筒接头 Impact Adaptor

Impact Adaptor
Augmentateur impact
adapter
Adapter
Adaptador
مشترك كهربائي
อะแดปเตอร์
接頭（適用於氣動工具）
1/4″ DR.- No.82804B 凹-1/4″ x 凸-3/8″

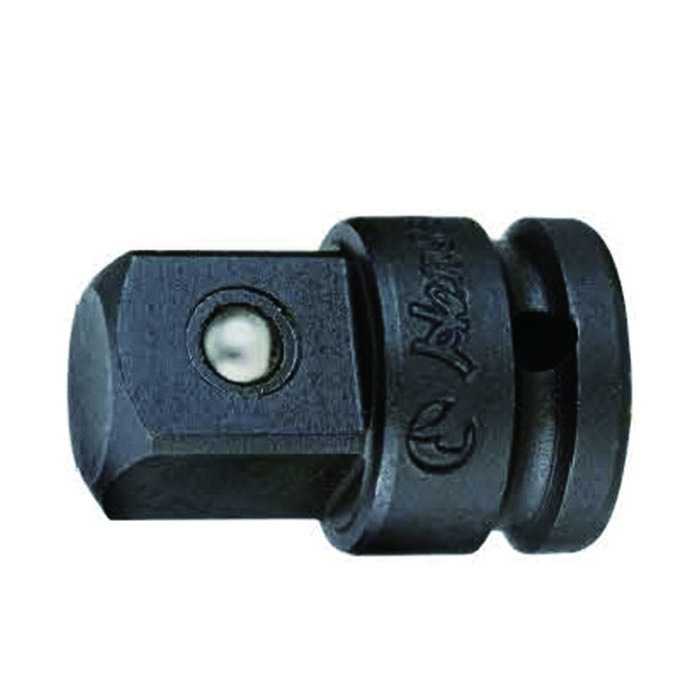

3/8″DR.- No.83804B 凹-3/8″ x 凸-1/2″ (LOW TORQUE)

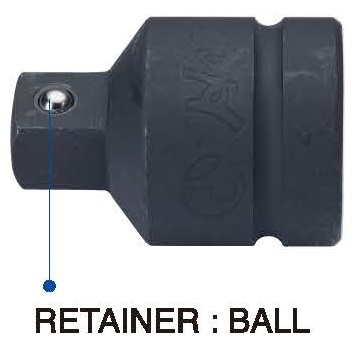

3/8″DR.-No.83805B 凹-3/8″ x 凸-1/4″ (LOW TORQUE)
1/2″DR.- No.84804B 凹-1/2″ x 凸-3/8″ (LOW TORQUE）
1/2″DR.- No.84805B 凹-1/2″ x 凸-3/4″
1/2″DR.- No.84804B 凹-1/2″ x 凸-3/8″ (LOW TORQUE）
3/4″DR.- No.86804B 凹-3/4″ x 凸-1/2″
3/4″DR.- No.86805B 凹-3/4″ x 凸-1″ (LOW TORQUE）
1 “DR.- No.88804B 凹-1 ” x 凸-3/4″
1 “DR.- No.88805B 凹-1 ” x 凸- (1- 1/2″) (LOW TORQUE）
1- 1/2″DR. No.814804B 凹-(1-1/2″) x 凸- 1″
1- 1/2″DR. No.814805B 凹-(1-1/2″) x 凸- (1-1/2″)
Adaptor is an accessory, no allow to operate as a impact socket for your safety responsibility
DIN 3121- ISO 1174

Feature

Made by Chromium-molybdenum alloy steel (chrome. moly)
is an alloy used for high pressure and temperature use. It is used in oil and gas, energy, construction and the automotive industries because of its corrosion resistance and high-temperature and tensile strength.

ITEM NO.	SIZE	RETAINER	L mm	g	pcs
82804B	凹 1/4" x 3/8" 凸	Ball	25	18	10
83804	凹 3/8" x 1/2" 凸	Pin	35	60	10
83804B	凹 3/8" x 1/2" 凸	Ball	35	60	10
83805	凹 3/8" x 1/4" 凸	Pin	28	30	10
83805B	凹 3/8" x 1/4" 凸	Ball	28	30	10
84804	凹 1/2" x 3/8" 凸	Pin	38	70	10
84804B	凹 1/2" x 3/8" 凸	Ball	38	70	10
84805	凹 1/2" x 3/4" 凸	Pin	45	160	10
84805B	凹 1/2" x 3/4" 凸	Ball	45	160	10
86804	凹 3/4" x 1/2" 凸	Pin	55	240	5
86804B	凹 3/4" x 1/2" 凸	Ball	55	240	5
86805	凹 3/4" x 1" 凸	Pin	65	320	5
86805B	凹 3/4" x 1" 凸	Ball	65	320	5
88804	凹 1" x 3/4" 凸	Pin	70	540	1
88804B	凹 1" x 3/4" 凸	Ball	70	540	1
88805	凹 1" x 1-1/2" 凸	Pin	80	720	1
88805B	凹 1" x 1-1/2" 凸	Ball	80	720	1
814804	凹 1-1/2" x 1" 凸	Pin	105	2260	1
814804B	凹 1-1/2" x 1" 凸	Ball	105	2260	1
814805	凹 1-1/2" x 2-1/2" 凸	Pin	115	2600	1
814805B	凹 1-1/2" x 2-1/2" 凸	Ball	115	2600	1
