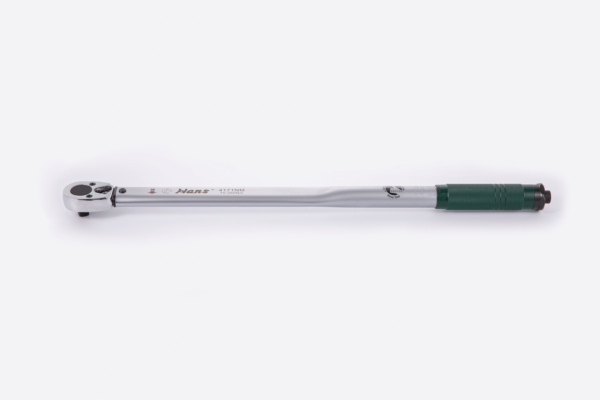

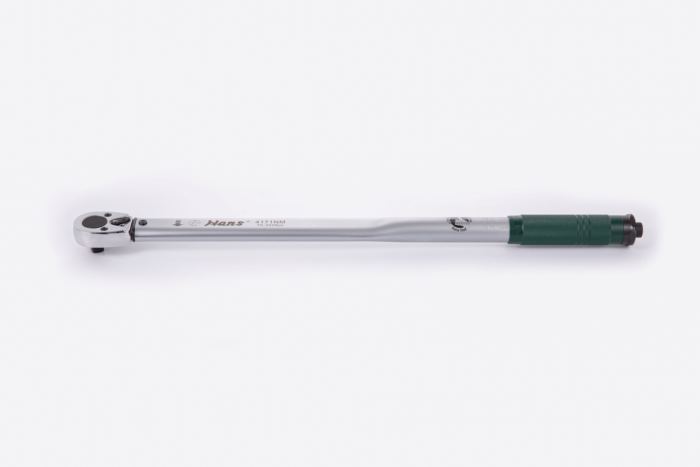

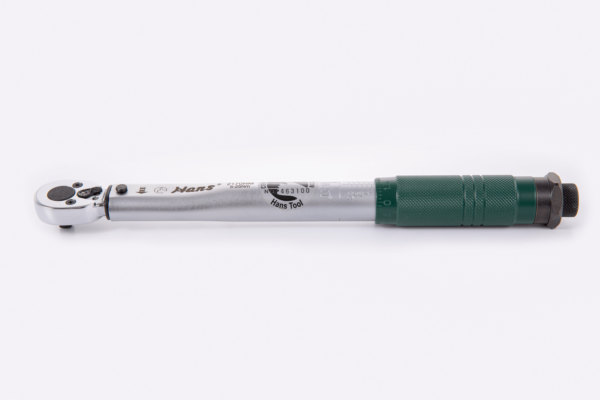

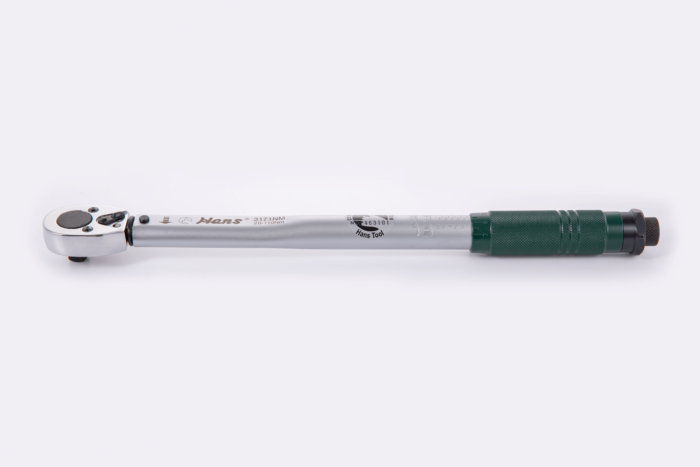

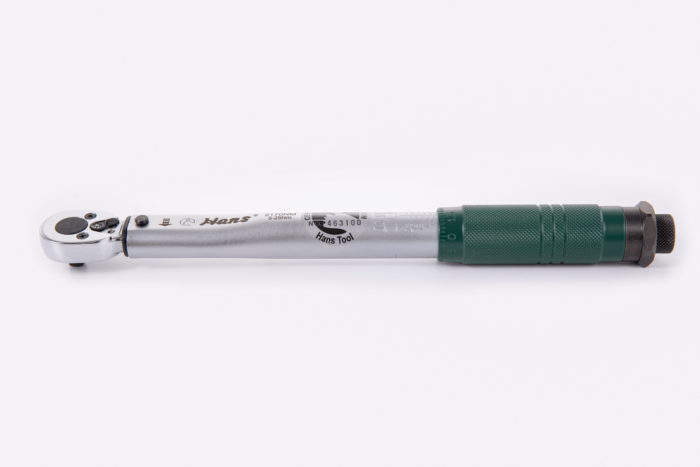

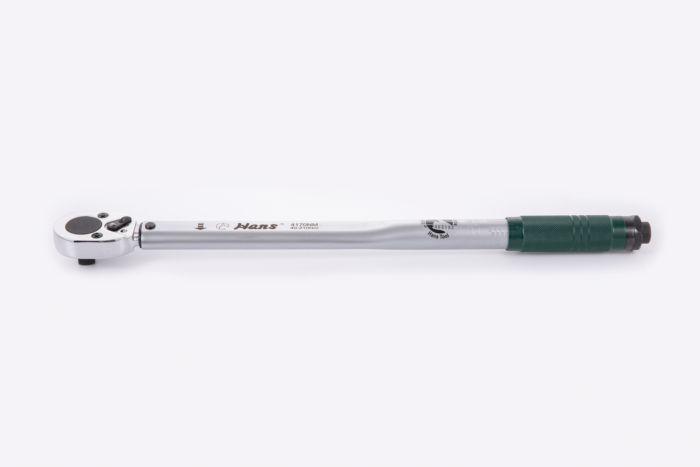

Clicker 扭力扳手 Torque Wrench- 1/4″, 3/8″, 1/2″, 3/4″ Drive- Green Steel Handle
Categories Torque Wrench/ Digital Torque Wrench, Torque Wrench
Tags 1/2"DR, 1/4"DR, 3/4"DR, 3/8"DR, 咔哒扭矩扳手, 扭矩扳手
Clicker 扭力扳手 Torque Wrench- 1/4″, 3/8″, 1/2″, 3/4″ Drive- Green Steel Handle
- Clés dynamométrique
- Klucz dynamometryczny
- Drehmomentschlüssel
- Llaves dinamométrica
- مفتاح العزم
- ประแจวัดแรงบิด
- 扭力扳手
- The model applied on 1/4″, 3/8″ 1/2″, 3/4″ Drive, apply for N.m and ft lbs (Newton-metre, foot-pound) Item No. 2170Nm, 3170Nm, 3171Nm 4175Nm, 4170Nm, 4171Nm, 6170Nm/ 2170NI, 3170NI, 3171NF, 4175NF, 4170NF, 4171NF, 6170NF

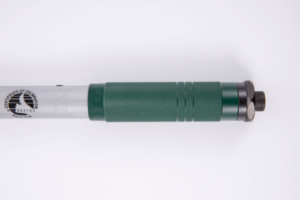

- Steel Handle(Green)
- DIN EN ISO 6789
- DIN 3120 – ISO 1174
- Clicker-type torque wrench is the most commonly used one in the oil and gas industry today. A clicker wrench is an affordable and extremely accurate tool for tightening bolts or nuts. It is not a power tool but a manual method to achieve proper torque, which makes it ideal for assembling equipment in the oil and gas industry. A clicker-type torque wrench is the most commonly used one in the oil and gas industry today.
- Torque wrench is an essential tool for ensuring that bolts are tightened to the correct specification. They are made from chrome vanadium steel for strength and durability, and have a ratchet head that allows them to be used for clockwise or anti-clockwise torque. The handle is knurled for a good grip, and when the required torque setting is reached, the wrench produces an audible click and a slight release of tension.
DRIVE | ITEM NO. | CAPACITY N · m | ITEM NO. | CAPACITY FT-LB (INCH-LB) | L mm / inch | g |
---|---|---|---|---|---|---|
1/4" | 2170Nm | 5-25 | 2170NI | 35-200 INCH · LB | 280 / 11" | 580 |
3/8" | 3170Nm | 5-25 | 3170NI | 35-200 INCH · LB | 275 / 11" | 580 |
3/8" | 3171Nm | 20-110 | 3171NF | 15-80 FT · LB | 360 / 14-3/8" | 820 |
1/2" | 4175Nm | 20-110 | 4175NF | 15-80 FT · LB | 360 / 14-3/8" | 830 |
1/2" | 4170Nm | 40-210 | 4170NF | 30-150 FT · LB | 465 / 18" | 1340 |
1/2" | 4171Nm | 70-350 | 4171NF | 50-250 FT · LB | 630 / 24-13/16" | 2400 |
3/4" | 6170Nm | 65-450 | 6170NF | 50-300 FT · LB | 850 / 33-1/2" | 3840 |
BLOW CASE FOR EACH |
