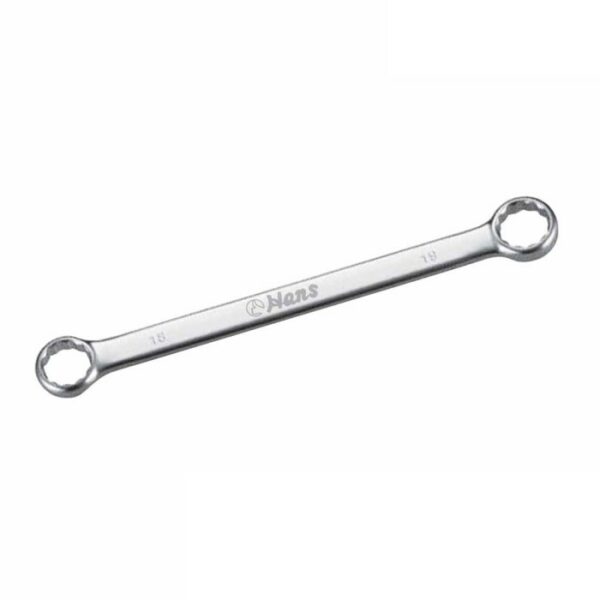

11050M-平杆梅花扳手 Double Ring Wrench(Flat-Type)
11050M-平杆梅花扳手 Double Ring Wrench(Flat-Type)
- Clés polygonales droites
- Płaski podwójny klucz oczkowy
- Flacher Doppelringschlüssel
- Llaves de estrella acodadas
- وجع حلقة مزدوجة نوع مسطح
- ประแจแหวนคู่แบบแบน
- 平桿梅花扳手

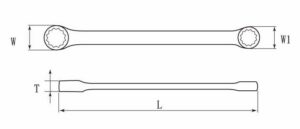

11050M mm | W mm | W1 mm | T mm | L mm | g | pcs |
---|---|---|---|---|---|---|
6x7 | 10.8 | 12 | 5.5 | 120 | 25 | 12 |
8x9 | 13.2 | 16.5 | 6.5 | 135 | 30 | 12 |
10x11 | 16.5 | 19.8 | 7.5 | 150 | 50 | 12 |
12x13 | 19.8 | 22 | 8.5 | 165 | 70 | 12 |
14x15 | 22 | 25 | 8.5 | 185 | 90 | 12 |
14x17 | 25 | 26.5 | 9.5 | 210 | 120 | 12 |
16x17 | 25 | 26.5 | 9.5 | 210 | 120 | 12 |
17x19 | 27.6 | 28.6 | 10.5 | 225 | 150 | 12 |
18x19 | 27.6 | 28.6 | 10.5 | 225 | 150 | 12 |
20x22 | 30.5 | 33.6 | 12.5 | 240 | 200 | 12 |
21x23 | 32 | 35.2 | 12.5 | 255 | 240 | 12 |
22x24 | 32 | 35.2 | 14.5 | 255 | 240 | 12 |
24x26 | 36.5 | 39.2 | 12.5 | 270 | 300 | 6 |
25x28 | 37.8 | 41.4 | 13.5 | 285 | 360 | 6 |
27x29 | 39.2 | 43.6 | 14.5 | 315 | 425 | 6 |
30x32 | 45 | 45 | 14.5 | 335 | 530 | 6 |
