1105M/A 缺口螺帽扳手 (12角) Flare Nut Wrench (12 Point)
1105M/A 缺口螺帽扳手 (12角) Flare Nut Wrench (12 Point)
- Flare Nut Wrenches (12 POINT)
- Clés à tuyauter
- Klucze do rur
- Rohrzangen
- Llaves para tuberías
- مفاتيح ربط ذات أطراف حلقية مفتوحة.
- ประแจท่อ
- DIN 3118
- 缺口螺帽扳手 (12角)
- An-Lock Drive® (Superb Torque) has one goal in mind and that is to help you get the job done right. With features like heads that reach tight spaces, serviceable reversing levers, and grips that prevent slippage, An-Lock makes it easier for you to get the job done faster and right.
Details
Flare-nut wrenches are best for hexagonal nuts and fittings. These wrench sets are used in a variety of industries, including the automobile industry. The wrenches fit in tight spaces and are easy to use, but they can be challenging to use on deep or high-torque nuts due to their small size. The best use of flare-nut wrenches is in the assembly industry, especially when working with automobiles. It gives mechanics and assemblers quick access to nuts and bolts that are tightly held in place, which is often critical to the safety and stability of a vehicle. The another use of flare-nut wrenches is in the construction industry, especially when working with plumbing.

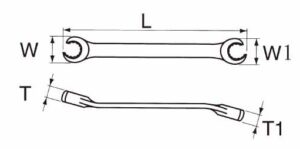

1105M 12 PT mm | W mm | W1 mm | T mm | T1 mm | L mm | g | pcs |
---|---|---|---|---|---|---|---|
15x17 | 27.4 | 30 | 11 | 12 | 196 | 145 | 12 |
16x17 | 27.4 | 30 | 11 | 12 | 196 | 145 | 12 |
17x19 | 30 | 32.5 | 12 | 14 | 210 | 180 | 12 |
18x19 | 30 | 32.5 | 12 | 14 | 210 | 180 | 12 |
19x22 | 32.5 | 38 | 14 | 16 | 233 | 240 | 12 |
20x22 | 32.5 | 38 | 14 | 16 | 233 | 240 | 12 |
21x23 | 38 | 41 | 16 | 17 | 252 | 300 | 12 |
22x24 | 38 | 41 | 16 | 17 | 252 | 300 | 12 |
24x27 | 41 | 45 | 17 | 18 | 265 | 350 | 12 |
25x28 | 41 | 45 | 17 | 18 | 265 | 350 | 12 |
30x32 | 48.5 | 51 | 21 | 23 | 285 | 470 | 6 |
32x36 | 51 | 58 | 23 | 25 | 315 | 640 | 6 |
36x41 | 58 | 65 | 25 | 27 | 350 | 820 | 6 |
1105A 12 PT inch | W mm | W1 mm | T mm | T1 mm | L mm | g | pcs |
---|---|---|---|---|---|---|---|
5/8x11/16 | 27.4 | 30 | 11 | 12 | 196 | 145 | 12 |
11/16x3/4 | 30 | 32.5 | 12 | 14 | 210 | 180 | 12 |
13/16x7/8 | 38 | 41 | 16 | 17 | 252 | 300 | 12 |
1"x1-1/8 | 41 | 45 | 17 | 18 | 265 | 350 | 12 |
1-1/8x1-1/4 | 48.5 | 51 | 21 | 23 | 285 | 470 | 6 |
