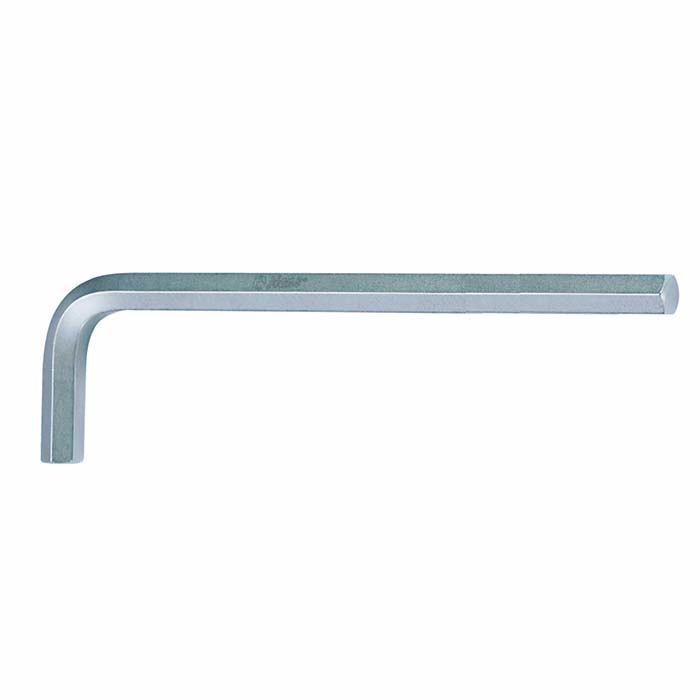

1763M/A-六角 L 型扳手 Hex Key Wrench
1763M/A- 六角 L 型扳手Hex Key Wrench (Long Arm)
- Clé hexagonale allongée en L
- Klucz sześciokątny wydłużony L
- Verlängerter L-Sechskantschlüssel
- Llave en L extendida hexagonal
- وجع سداسي على شكل حرف L ممتد
- ประแจแอลขยายหกเหลี่ยม
- DIN-ISO 2936
- Made by S2 steel material
- 六角L型扳手 (加長)
- Handle Introduction- (Plier, Torque Wrench and Wrench)
Information
- Hex-Key is called Allen key because it is a hexagonal set screw and wrench for fastening them. It gets its name from the Allen Manufacturing Company, which created hexagonal set screws and wrenches.
- What is the difference between Torx and Star Bits? The term Torx stands for the trademark name, while the term “star” describes the tool generically. The two can be used interchangeably, since the tools are identical. The Star Plus design was introduced to make a better Torx Bit, and Torx Plus screws cannot be used with the old Star Bits. The classic Star Bit can be used on the newer design, but it will be loose.
| SIZE mm | SIZE inch | ARM (L1) | ARM (L2) |  g |
|---|---|---|---|---|
| 1.3 | 12 | 72 | 0.9 | |
| 1.5 | 1/16 | 14 | 77 | 1.4 |
| 2 | 5/64 | 16 | 83 | 2.5 |
| 2.5 | 3/32 | 18 | 90 | 4.3 |
| 7/64 | 19 | 94 | 6 | |
| 3 | 1/8 | 20 | 96 | 6.8 |
| 3.5 | 9/64 | 22 | 102 | 10 |
| 4 | 5/32 | 24 | 105 | 13.5 |
| 4.5 | 25 | 112 | 19 | |
| 5 | 3/16 | 26 | 115 | 23 |
| 5.5 | 7/32 | 28 | 124 | 30 |
| 6 | 1/4 | 30 | 133 | 38 |
| 7 | 9/32 | 33 | 137 | 57 |
| 8 | 5/16 | 36 | 154 | 79 |
| 9 | 38 | 156 | 114 | |
| 10 | 3/8 | 40 | 170 | 138 |
| 12 | 1/2 | 45 | 206 | 251 |
| 14 | 9/16 | 54 | 230 | 385 |
| 17 | 5/8 | 60 | 250 | 623 |
| 19 | 3/4 | 70 | 280 | 876 |
