1164EL/ELA-复合扳手-特长 Combination Wrench 复合扳手-特长- Extra Long
SKU
1164EL/ELA
Categories Wrench- Individual, Wrench, Wrench / L-Key Wrench
Tags 两用复合式扳手, 加长/特长, 扳手, 镜面/亮面表面处理
1164EL/ELA- 复合扳手-特长 Combination Wrench- Extra Long
- Combination Wrench- Extra Long
- Clés mixtes extra longue
- Bardzo długi klucz płasko-oczkowy
- Extra langer Kombischlüssel
- Llaves combinada de extra large
- مفتاح ربط طويل للغاية
- ประแจรวมยาวพิเศษ
- 亮面雙用扳手 超長型
- ISO 3318
- ASME B107.6
- An-Lock Drive® (Superb Torque) has one goal in mind and that is to help you get the job done right. With features like heads that reach tight spaces, serviceable reversing levers, and grips that prevent slippage, An-Lock makes it easier for you to get the job done faster and right.

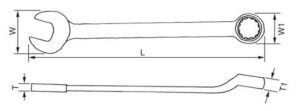

1164EL (mm) | W (mm) | W1 (mm) | T (mm) | T1 (mm) | L (mm) | ![]() g | ![]() pcs |
---|---|---|---|---|---|---|---|
10 | 23.4 | 16.4 | 6.1 | 7.3 | 189 | 54 | 12 |
11 | 25.2 | 17.9 | 6.3 | 7.4 | 207 | 75 | 12 |
12 | 27.8 | 19.4 | 6.6 | 8.2 | 225 | 88 | 12 |
13 | 29.2 | 21 | 6.7 | 8.9 | 243 | 104 | 12 |
14 | 32 | 22.4 | 7.9 | 9.5 | 261 | 149 | 12 |
15 | 34.1 | 24 | 8 | 9.7 | 279 | 167 | 12 |
16 | 35.9 | 25.4 | 8.3 | 10.4 | 297 | 203 | 12 |
17 | 38.2 | 26.8 | 8.4 | 10.5 | 314 | 231 | 12 |
18 | 40 | 28.1 | 8.8 | 11.7 | 333 | 272 | 6 |
19 | 42.1 | 29.3 | 9.7 | 13.1 | 349 | 298 | 6 |
1164ELA (inch) | W (mm) | W1 (mm) | T (mm) | T1 (mm) | L (mm) | ![]() g | ![]() pcs |
---|---|---|---|---|---|---|---|
(3/8) | 22 | 15.1 | 5.4 | 6.8 | 167 | 40 | 12 |
(7/16) | 25.3 | 16.7 | 6 | 7.4 | 186 | 60 | 12 |
(1/2) | 28.6 | 18.8 | 7 | 8.6 | 205 | 100 | 12 |
(9/16) | 31.5 | 21.5 | 7.4 | 9.4 | 223 | 120 | 12 |
(5/8) | 33.7 | 23.8 | 8.1 | 10.6 | 243 | 160 | 12 |
(11/16) | 36.6 | 25.5 | 8.4 | 11.4 | 262 | 200 | 12 |
(3/4) | 40.2 | 28.5 | 9 | 13 | 281 | 240 | 6 |
(13/16) | 43.2 | 30.2 | 9.4 | 13.8 | 301 | 300 | 6 |
(7/8) | 46.5 | 32.7 | 9.8 | 14.6 | 319 | 320 | 6 |
(15/16) | 49.7 | 34.8 | 10.5 | 16 | 339 | 470 | 6 |
(1") | 52.9 | 37 | 11.3 | 17.2 | 373 | 620 | 6 |
(1-1/16) | 56.1 | 39.3 | 12.2 | 18.6 | 388 | 700 | 6 |
(1-1/8) | 59.2 | 41.4 | 13 | 19.8 | 404 | 820 | 6 |
(1-3/16) | 59.2 | 41.4 | 13 | 19.8 | 404 | 820 | 6 |
(1-1/4) | 65.6 | 46 | 14.4 | 22 | 431 | 1100 | 6 |
