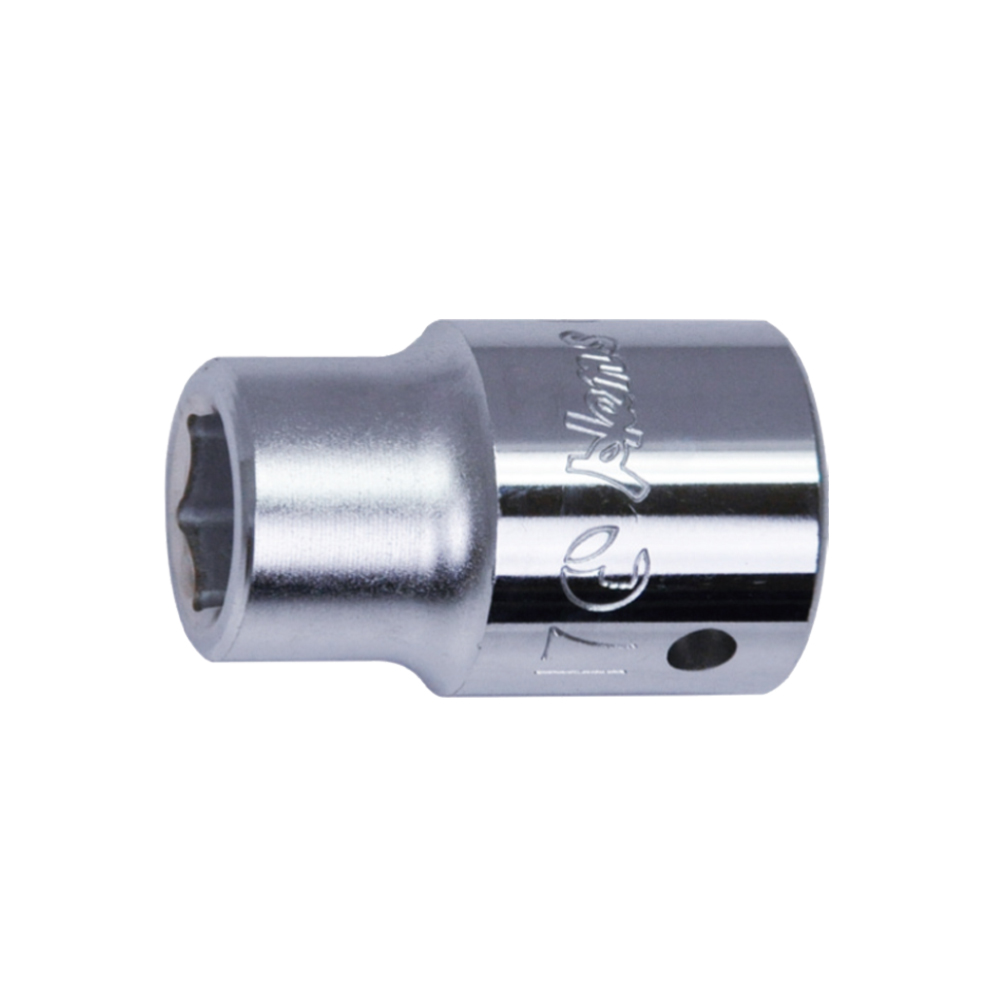

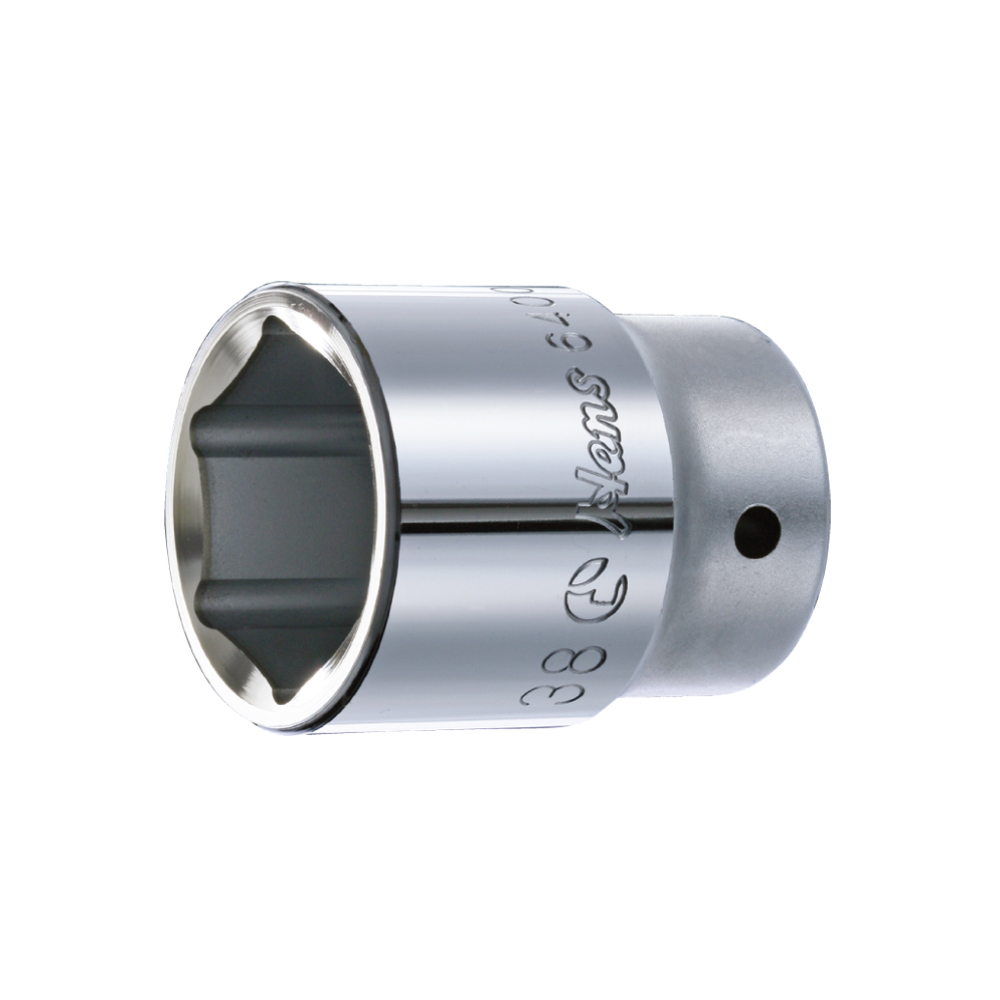

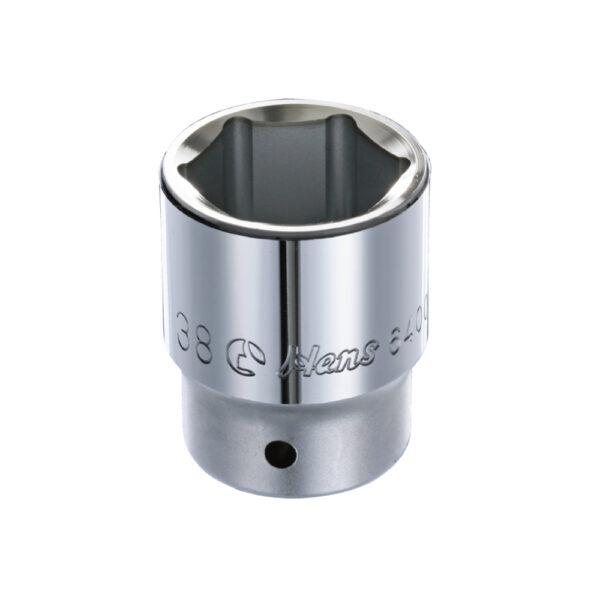

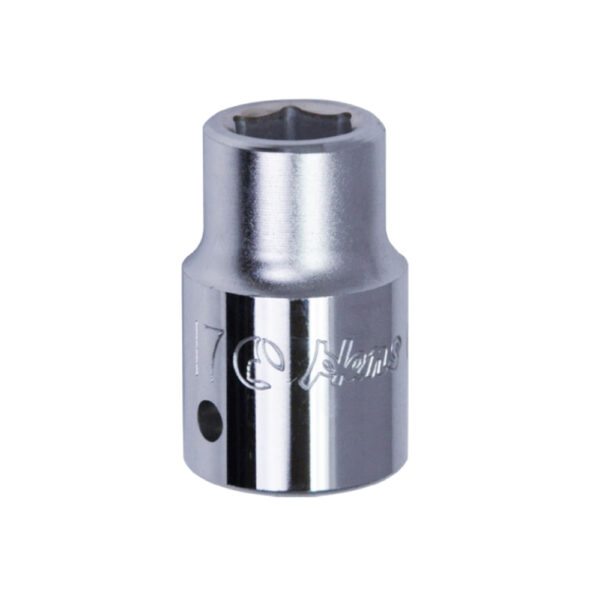

6400M/A- 六角手动套筒 3/4″ Drive Hand Socket (Manual) 6 Point
3/4″ DRIVE 六角手动套筒 HAND SOCKET (MANUAL) 6 POINT
- Douilles 6 pans
- Gniazdo sześciokątne
- Sechskant
- Vasos de hexagonal
- بكسات(مَقْابِس) مُسدّسة.
- ซ็อกเก็ตฐานสิบหก
- DIN 3120, ISO 1174
- DIN 3124, ISO 2725-1
- ASME B 107.5M, ASME B 107.1
- 手動套筒 公制/ 英制 六角-
- An-Lock Drive® (Superb Torque)

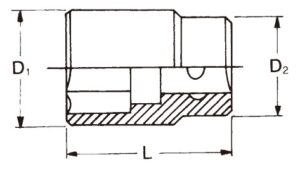

| 6400M (mm) | 6400A (inch) | D1 (mm) | D2 (mm) | L (mm) |  |  |
|---|---|---|---|---|---|---|
| 14 | 23.2 | 34 | 50 | 250 | 5 | |
| 16 | 25.2 | 34 | 50 | 260 | 5 | |
| 17 | 11/16 | 27.1 | 34 | 50 | 270 | 5 |
| 18 | 28.2 | 34 | 50 | 270 | 5 | |
| 19 | 3/4 | 29.2 | 34 | 50 | 280 | 5 |
| 20 | 25/32 | 30.2 | 34 | 50 | 280 | 5 |
| 21 | 13/16 | 31.2 | 34 | 50 | 280 | 5 |
| 22 | 7/8 | 32.2 | 36 | 50 | 290 | 5 |
| 23 | 33.2 | 36 | 50 | 300 | 5 | |
| 24 | 15/16 | 34.2 | 36 | 50 | 300 | 5 |
| 25 | 1" | 36 | 35 | 52 | 310 | 5 |
| 26 | 37 | 36 | 52 | 320 | 5 | |
| 27 | 1-1/16 | 38 | 36 | 52 | 330 | 5 |
| 28 | 40 | 38 | 52 | 330 | 5 | |
| 29 | 1-1/8 | 40 | 38 | 52 | 340 | 5 |
| 30 | 1-3/16 | 42 | 38 | 54 | 370 | 5 |
| 31 | 43 | 38 | 54 | 380 | 5 | |
| 32 | 1-1/4 | 44 | 38 | 56 | 420 | 5 |
| 33 | 1-5/16 | 46 | 38 | 56 | 440 | 5 |
| 34 | 47 | 42 | 56 | 470 | 5 | |
| 35 | 1-3/8 | 48 | 42 | 58 | 490 | 5 |
| 36 | 1-7/16 | 50 | 42 | 58 | 510 | 5 |
| 38 | 1-1/2 | 52 | 45 | 60 | 550 | 5 |
| 40 | 1-9/16 | 54 | 45 | 60 | 580 | 1 |
| 41 | 1-5/8 | 56 | 45 | 64 | 590 | 1 |
| 42 | 57 | 45 | 64 | 600 | 1 | |
| 43 | 1-11/16 | 58 | 45 | 64 | 620 | 1 |
| 44 | 59 | 48 | 64 | 670 | 1 | |
| 45 | 1-3/4 | 61 | 48 | 66 | 710 | 1 |
| 46 | 1-13/16 | 62 | 48 | 68 | 730 | 1 |
| 48 | 1-7/8 | 64 | 48 | 70 | 770 | 1 |
| 1-15/16 | 66 | 48 | 70 | 790 | 1 | |
| 50 | 68 | 48 | 70 | 790 | 1 | |
| 51 | 2" | 68 | 48 | 72 | 820 | 1 |
| 52 | 2-1/16 | 70 | 48 | 72 | 860 | 1 |
| 54 | 2-1/8 | 72 | 48 | 76 | 910 | 1 |
| 55 | 2-3/16 | 74 | 48 | 76 | 1030 | 1 |
| 57 | 2-1/4 | 76 | 48 | 76 | 1100 | 1 |
| 58 | 78 | 48 | 76 | 1250 | 1 | |
| 59 | 2-5/16 | 78 | 48 | 78 | 1350 | 1 |
| 60 | 2-3/8 | 80 | 48 | 78 | 1450 | 1 |
| 2-7/16 | 82 | 50 | 82 | 1480 | 1 | |
| 63 | 2-1/2 | 84 | 50 | 82 | 1600 | 1 |
| 65 | 2-9/16 | 86 | 60 | 85 | 1750 | 1 |
| 2-5/8 | 88 | 60 | 88 | 1700 | 1 | |
| 70 | 2-3/4 | 92 | 60 | 90 | 1950 | 1 |
