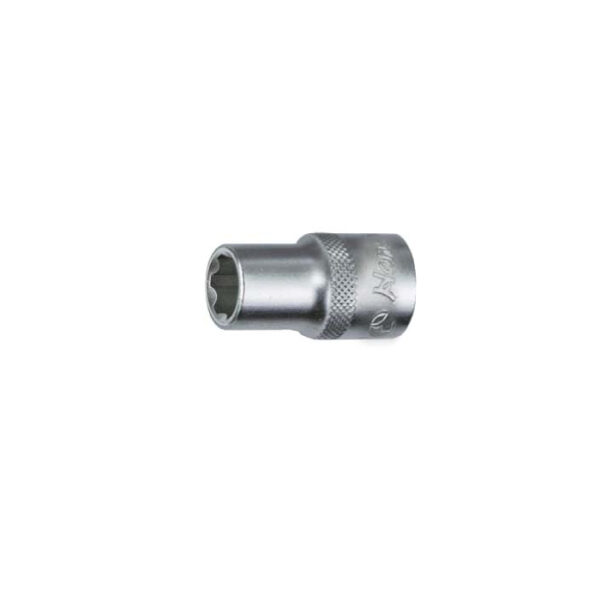

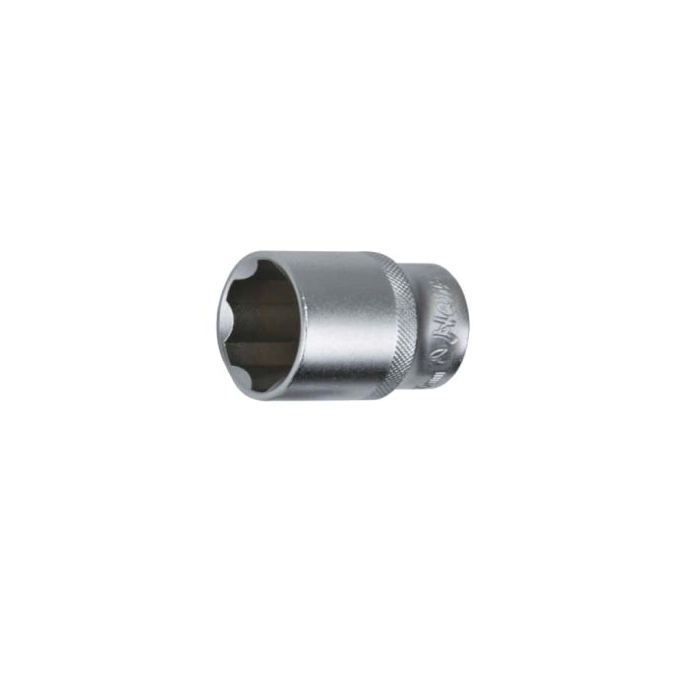

24R0M-大R角手动套筒Surface Drive Hand Socket (Manual)- 1/4″ Drive
24R0M-大R角手动套筒Surface Drive Hand Socket (Manual)- 1/4″ Drive
- vasos de surface drive
- douilles 6 pans surface drive
- unidade de superfície douilles 6 panelas
- douilles 6 pfannen oberflächenantrieb
- douilles 6 casseroles surface drive
- ไดรฟ์พื้นผิว douilles 6 กระทะ
- 大R角手動套筒
- DIN 3120, ISO 1174
- MS 33787, MIL-W-8982
Feature

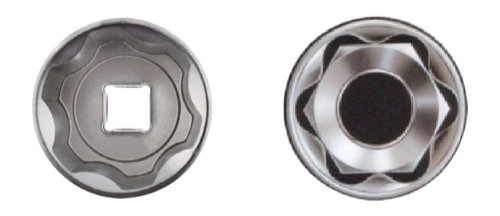

- Surface Drive sockets are designed to ensure that contact is not lost between the socket and the flat surfaces of the nut when it most matters: when you’re trying to apply maximum torque (and turn off the engine). Since they were first developed, they have been further refined by removing their protruding stem, lowering their profile even more.
- Compared to a flat drive, surface drives make contact with the nut at the center of the bolt, reducing damage and boosting efficiency. Surface drives are also useful for painted face nuts or any nut made of soft material, as well as bolts or nuts that have been damaged by corrosion or wear and tear.
- Compared to traditional Torx® and square head bolts, Hex Cap Screws are bigger and easier to handle. They are also more cost-effective, with the ability to hold most of the jobs it is assigned.
24R0M SURFACE DRIVE SOCKET
| 24R0M mm | D1 mm | D2 mm | L mm |  g |  pcs |
|---|---|---|---|---|---|
| 4 | 6.7 | 11.85 | 25 | 9 | 50 |
| 4.5 | 7.3 | 11.85 | 25 | 9 | 50 |
| 5 | 8 | 11.85 | 25 | 9 | 50 |
| 6 | 9.1 | 11.85 | 25 | 11 | 50 |
| 7 | 10.8 | 11.85 | 25 | 10 | 50 |
| 8 | 11.85 | 11.85 | 25 | 13 | 50 |
| 9 | 12.85 | 11.85 | 25 | 18 | 50 |
| 10 | 14.4 | 14.4 | 25 | 25 | 50 |
| 11 | 15.8 | 15.8 | 25 | 25 | 50 |
| 12 | 16.85 | 16.85 | 25 | 28 | 50 |
| 13 | 17.85 | 17.85 | 25 | 37 | 50 |
| 14 | 19.4 | 19.4 | 25 | 45 | 50 |

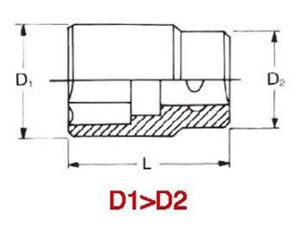

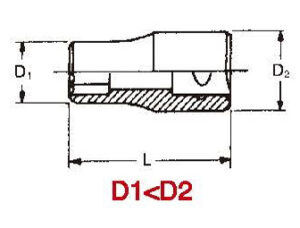

Dimension
The Drive socket makes use of an innovative design that results in almost twice the contact of a standard flat-topped socket. This helps it transmit more torque at a fraction of the weight and cost. Additionally, this new design also helps protect against rounding of fasteners caused by repeated use of conventional sockets, helping you save on overall maintenance costs.
