84116-工业级风动冲击扳手 双锤结构 Air Impact Wrench (Super Duty)- 1/2″ Drive
84116-工业级风动冲击扳手 双锤结构 Air Impact Wrench (Super Duty)- 1/2″ Drive
- 1/2″ Drive Air Impact Wrench (Super Duty)
- Automotive Special Repair
- Clé à chocs à air
- Klucz udarowy pneumatyczny
- Llave de impacto
- Druckluft-Schlagschrauber
- تأثير وجع الهواء
- ประแจผลกระทบอากาศ
- 工業級氣動工具 超大出力 1/2″方頭
- Twin-Hammer, 雙鎚結構
- Impact Wrench- Pneumatic Power Instruction
ITEM NO. | DRIVE | ANVIL inch(mm) | MAX TORQUE FT · LB(Nm) @ 5 SEC | MINI TORQUE FT · LB(Nm) | STDBOLT SIZE inch(mm) | FREE SPEED R.P.M. | MECHANISM |
---|---|---|---|---|---|---|---|
84110 | 0.8" (20mm) | 600 ft-lbs 814 N . m | 30-420 ft-lbs 41-570 N . m | 5/8"(M16) | 7500 | TWIN HAMMER |
|
84110-2 | 2.79" (71mm) | 600 ft-lbs 814 N . m | 30-420 ft-lbs 41-570 N . m | 5/8"(M16) | 7500 | TWIN HAMMER |
|
84111 | 0.8" (20mm) | 700 ft-lbs 949 N . m | 86-620 ft-lbs 108-841 N . m | 3/4"(M19) | 7000 | NEW TWIN HAMMER |
|
84111-2 | 2.79" (71mm) | 700 ft-lbs 949 N . m | 86-620 ft-lbs 108-841 N . m | 3/4"(M19) | 7000 | NEW TWIN HAMMER |
|

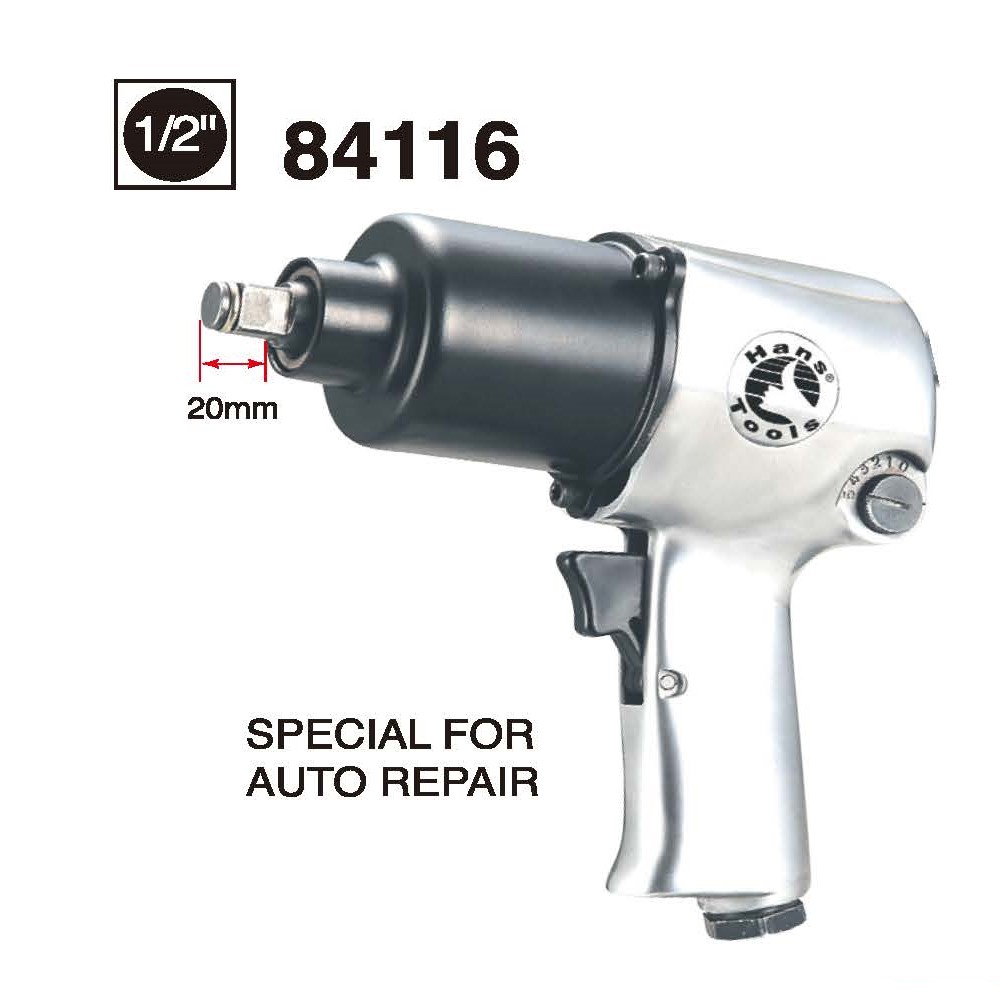

84116 | 0.8" (20mm) | 600 ft-lbs 814 N . m | 30-420 ft-lbs 41-570 N . m | 5/8"(M16) | 8000 | TWIN HAMMER |
|

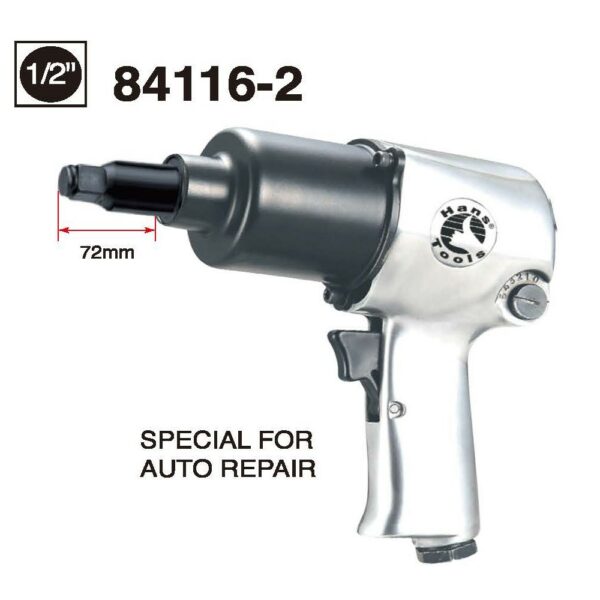

84116-2 | 2.84" (72mm) | 600 ft-lbs 814 N . m | 30-420 ft-lbs 41-570 N . m | 5/8"(M16) | 8000 | TWIN HAMMER |
EXHAUST | AVG.DLR CONSUMPTION CFM | AIR PRESSURE BAR(PSI) | AIR INLET inch | AIR HOSE ID | OVERALL LENGTH inch(mm) | KGS | pcs |
---|---|---|---|---|---|---|---|
HANDLE W/MUFFLER | 5.6 | 6.2(90) | 1/4 | 3/8 | 7.8"(197) | 2.64 | 8 |
HANDLE W/MUFFLER | 5.6 | 6.2(90) | 1/4 | 3/8 | 9.8"(248) | 2.76 | 8 |
HANDLE W/MUFFLER | 5.9 | 6.2(90) | 1/4 | 3/8 | 8"(204) | 2.88 | 8 |
HANDLE W/MUFFLER | 5.9 | 6.2(90) | 1/4 | 3/8 | 10"(254) | 3 | 8 |
FRONT | 4 | 6.2(90) | 1/4 | 3/8 | 6.7"(171) | 2.56 | 8 |
FRONT | 4 | 6.2(90) | 1/4 | 3/8 | 8.7"(221) | 2.68 | 8 |
