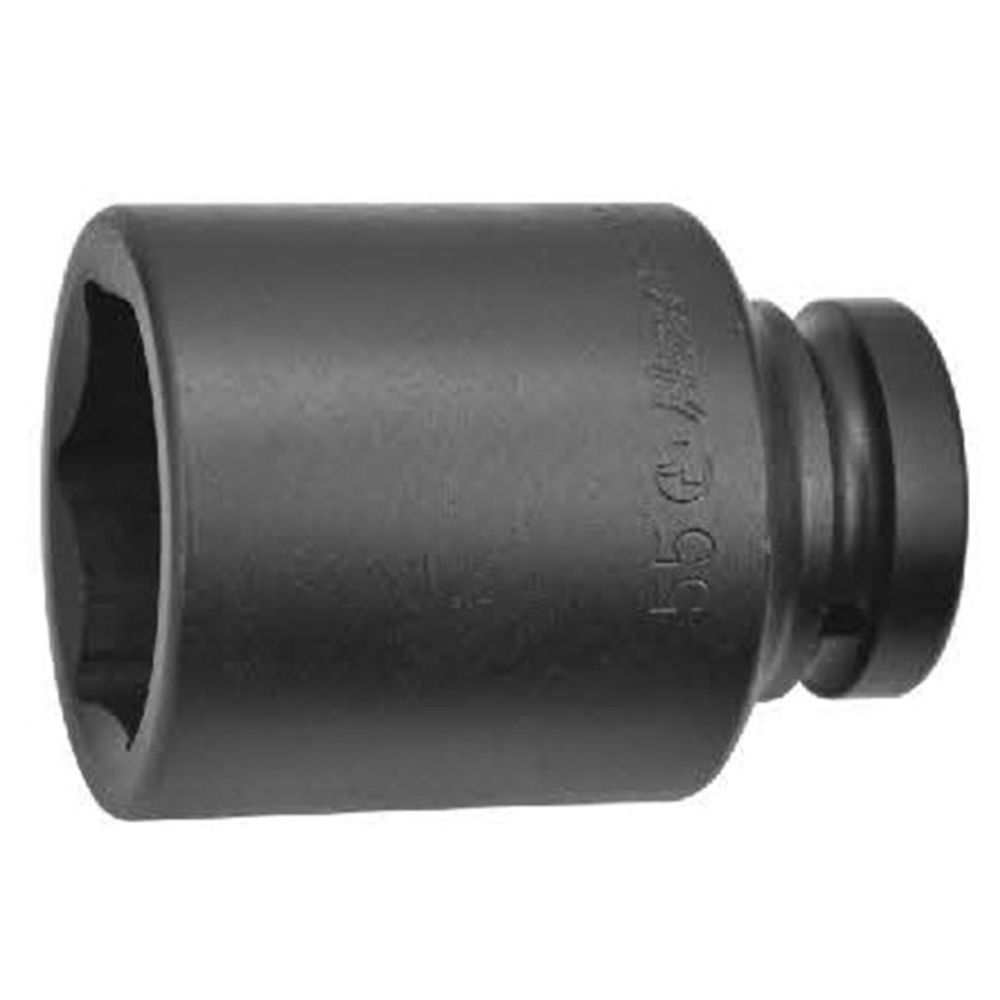

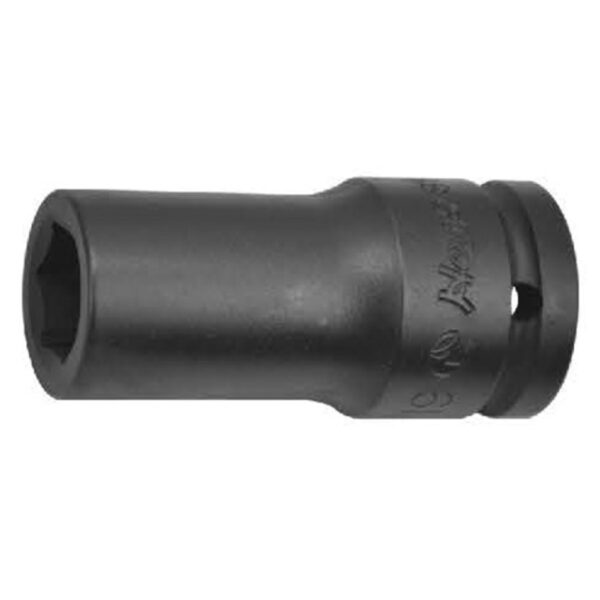

86300M/A-风动长套筒 Deep Impact Socket- 3/4″ Drive
86300M/A-风动长套筒 Deep Impact Socket- 3/4″ Drive
- 3/4″Drive Deep Impact Socket
- Douilles longues impact 6 pans
- Długie sześciokątne nasadki udarowe
- Lange Kraft-Sechskantnüsse
- Vasos largo de hexagonal impacto
- مآخذ تأثير سداسية طويلة
- ซ็อกเก็ตกระแทกหกเหลี่ยมยาว
- An-Lock Drive
- DIN 3121- ISO 1174
- DIN 3129- ISO 2725-2
- 氣動長套筒 公制/英制
Feature
- An-Lock Drive® (Superb Torque) was founded with one mission in mind: to help their customers get the job done correctly, safely, and efficiently. With a foundation of quality and safety, An-Lock offer tools that are stronger and faster than other standard alternatives.
- Made by Chromium-molybdenum alloy steel (chrome. moly)
is an alloy used for high pressure and temperature use. It is used in oil and gas, energy, construction and the automotive industries because of its corrosion resistance and high-temperature and tensile strength.
| 86300M mm | 86300A inch | D1 mm | D2 mm | L mm |  g |  pcs |
|---|---|---|---|---|---|---|
| 17 | 11/16 | 29 | 38 | 90 | 500 | 5 |
| 18 | 30 | 38 | 90 | 500 | 5 | |
| 19 | 3/4 | 32 | 38 | 90 | 500 | 5 |
| 20 | 25/32 | 33 | 38 | 90 | 500 | 5 |
| 21 | 13/16 | 34 | 38 | 90 | 510 | 5 |
| 22 | 7/8 | 36 | 40 | 90 | 530 | 5 |
| 23 | 37 | 40 | 90 | 540 | 5 | |
| 24 | 15/16 | 38 | 40 | 90 | 540 | 5 |
| 25 | 1" | 39 | 40 | 90 | 570 | 5 |
| 26 | 41 | 40 | 90 | 620 | 5 | |
| 27 | 1-1/16 | 42 | 41 | 90 | 690 | 5 |
| 28 | 1-1/8 | 44 | 43 | 90 | 720 | 5 |
| 29 | 45 | 44 | 90 | 750 | 5 | |
| 30 | 1-3/16 | 46 | 44 | 90 | 760 | 5 |
| 32 | 1-1/4 | 48 | 44 | 90 | 790 | 5 |
| 33 | 1-5/16 | 50 | 44 | 90 | 820 | 1 |
| 34 | 51 | 44 | 90 | 850 | 1 | |
| 35 | 1-3/8 | 52 | 44 | 90 | 880 | 1 |
| 36 | 1-7/16 | 54 | 44 | 90 | 880 | 1 |
| 38 | 1-1/2 | 56 | 44 | 90 | 900 | 1 |
| 40 | 1-9/16 | 58 | 44 | 90 | 960 | 1 |
| 41 | 1-5/8 | 60 | 44 | 90 | 1000 | 1 |
| 42 | 61 | 44 | 90 | 1050 | 1 | |
| 43 | 1-11/16 | 62 | 44 | 90 | 1100 | 1 |
| 45 | 1-3/4 | 65 | 44 | 95 | 1200 | 1 |
| 46 | 1-13/16 | 66 | 44 | 95 | 1200 | 1 |
| 48 | 1-7/8 | 68 | 44 | 100 | 1300 | 1 |
| 50 | 1-15/16 | 71 | 44 | 100 | 1300 | 1 |
| 51 | 2" | 72 | 54 | 100 | 1350 | 1 |
| 52 | 2-1/16 | 73 | 54 | 100 | 1360 | 1 |
| 54 | 2-1/8 | 76 | 54 | 100 | 1410 | 1 |
| 55 | 2-3/16 | 77 | 54 | 105 | 1560 | 1 |
| 56 | 79 | 54 | 105 | 1710 | 1 | |
| 57 | 2-1/4 | 80 | 54 | 105 | 1760 | 1 |
| 58 | 81 | 54 | 105 | 1860 | 1 | |
| 59 | 2-5/16 | 82 | 54 | 105 | 1960 | 1 |
| 60 | 2-3/8 | 83 | 60 | 105 | 1960 | 1 |
| 63 | 2-1/2 | 87 | 60 | 105 | 2110 | 1 |
| 65 | 2-5/8 | 90 | 60 | 105 | 2300 | 1 |
| 67 | 91 | 60 | 105 | 2400 | 1 | |
| 70 | 2-3/4 | 96 | 60 | 105 | 2500 | 1 |
