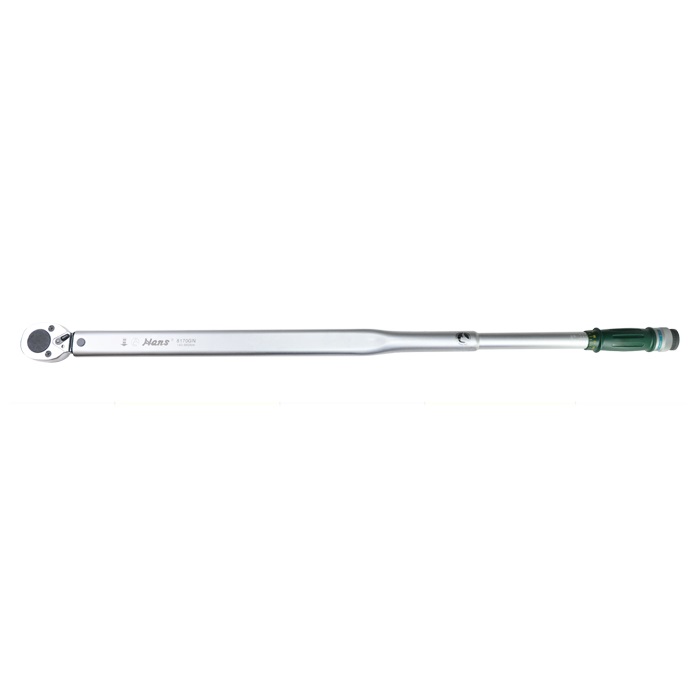

快脱式扭力扳手特長型 Micro Torque Wrench Lock-up Type-(Extended Long)- 3/4″, 1″ Drive
快脱式扭力扳手特長型Micro Torque Wrench Lock-up Type-(Extended Long)- 3/4″, 1″ Drive
- Adjustable torque model for clockwise tightening.
- The model applied on 1/4″, 3/8″ 1/2″, 3/4″ Drive, apply for N.m and ft lbs (Newton-metre, foot-pound)
- Sensible and audible alarm on reaching preset torque value
- Plastic Green Handle
- Clés dynamométrique
- Klucz dynamometryczny
- Drehmomentschlüssel
- Llaves dinamométrica
- مفتاح العزم
- ประแจวัดแรงบิด
- 扭力扳手
- 6171GN/ 6173GN/ 8170GN/ 6171GF/ 6173GF 8170GF
- DIN EN ISO 6789
- DIN 3120 – ISO 1174
- A torque wrench is an essential tool for ensuring that bolts are tightened to the correct specification. They are made from chrome vanadium steel for strength and durability, and have a ratchet head that allows them to be used for clockwise or anti-clockwise torque. The handle is knurled for a good grip, and when the required torque setting is reached, the wrench produces an audible click and a slight release of tension.
| DRIVE | ITEM NO. | CAPACITY N · m | ITEM NO. | CAPACITY FT · LB | L mm/inch |  g |
|---|---|---|---|---|---|---|
| 3/4" | 6171GN | 140-700 | 6171GF | 100-600 | 1090/ 43" | 7540  |
| 3/4" | 6173GN | 140-980 | 6173GF | 100-700 | 1230/ 48-1/2" | 8200 |
| 1" | 8170GN | 140-980 | 8170GF | 100-700 | 1230/ 48-1/2" | 8200 |
| BLOE CASE FOR EACH | ||||||
