扭力扳手 (窗型刻度显示) Torque Wrench (Scale Window)- 1/4″, 3/8″, 1/2″ Drive
Categories Torque Wrench/ Digital Torque Wrench, Torque Wrench
Tags 1/2"DR, 1/4"DR, 3/8"DR, 扭矩扳手, 视窗显示

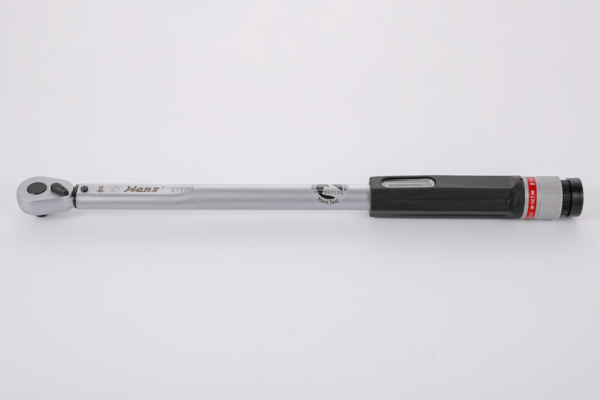

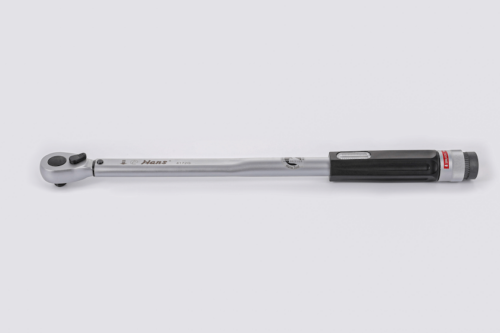

扭力扳手 (窗型刻度显示) Torque Wrench (Scale Window)
- Clés dynamométrique
- Klucz dynamometryczny
- Drehmomentschlüssel
- Llaves dinamométrica
- مفتاح العزم
- ประแจวัดแรงบิด
- 扭力扳手

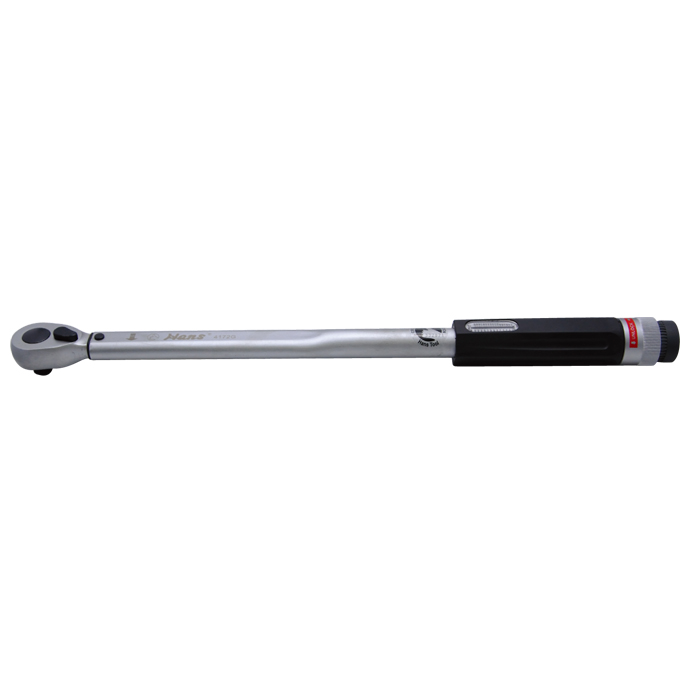

- 2172G/ 2173G/ 3172G/ 3173G/ 4172G/ 4173G
- DIN EN ISO 6789
- DIN 3120 – ISO 1174

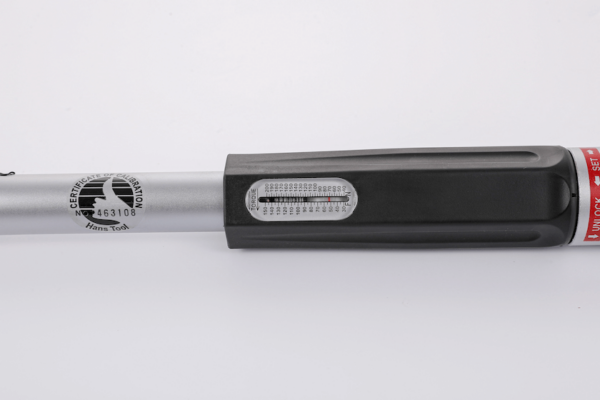

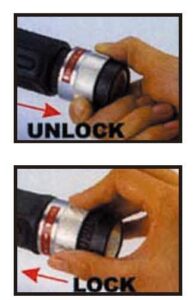

- Accuracy: +/-3% of reading. Micrometer Scale for simple and error free setting. (On dual scale wrenches, the micrometer increment applies to the N·m scale.) Quick and Light Adjustment: scale can quickly be achieved and with minimal effort in approximately ten complete turns (exact number varies by model).
- The handle is made of two materials: a base material for strength and a soft grip for comfort and slip resistance. The materials resist chemicals and are durable in the face of rigorous use.

DRIVE | ITEM NO. | CAPACITY N · m | CAPACITY FT · LB INCH · LB | L mm/inch | ![]() g |
---|---|---|---|---|---|
1/4" | 2172G | 6-30 | 40-250 INCH · LB | 310/ 12" | 1530 ![]() |
1/4" | 2173G | 3-15 | 30-150 INCH · LB | 193/ 7-19/32" | 1530 ![]() |
3/8" | 3172G | 20-100 | 15-75 FT · LB | 440/ 17-3/8" | 1530 ![]() |
3/8" | 3173G | 10-60 | 9-45 FT · LB | 390/ 15-23/64" | 1530 ![]() |
1/2" | 4172G | 40-200 | 30-150 FT · LB | 530/ 21" | 2000 ![]() |
1/2" | 4173G | 60-320 | 60-230 FT · LB | 600/ 24" | 2000 ![]() |
