Torque Multiplier Tool Simple Set (2 PCs) 6194, 8194 Series

Torque Multiplier Tool Simple Set/ 6194, 8194 Series

Torque Multiplier Tool Simple Set (2 PCs) 6194, 8194 Series

扭矩倍增器工具 Torque Multiplier Tool Set 6194, 8194 Series

Categories Torque Wrench/ Digital Torque Wrench, Torque Wrench Tags 強力型, 扭矩倍增工具

扭矩倍增器工具 Torque Multiplier Tool Set (2 PCs) 6194, 8194 Series

Multiplicateur de dynamometrique
Mnożnik momentu obrotowego
Drehmomentmultiplikator
Multiplicando dinamométrica
مضاعف عزم الدوران
ตัวคูณแรงบิด
倍力器
Packing Details from the factory

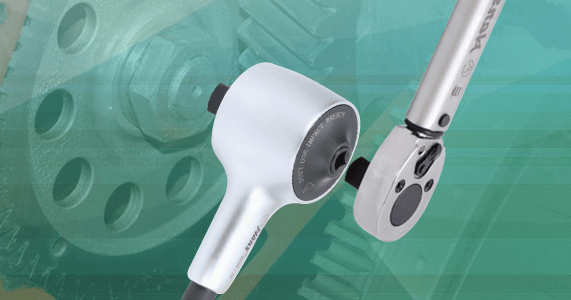

Torque Multiplier

Make work easier by using leverage which multiplies the Torque.
There are three ways simple machines make work easier:

by increasing the distance through which force is applied,
by changing the direction of applied force,
by multiplying force of speed of the energy applied.

ITEM NO.	F (HORSE)	M (SQUARE)	GEAR RATIO	TORQUE RATIO
6194-4	1/2" DR.	3/4" DR.	1 : 4	1 : 3.3
6194-9	1/2" DR.	3/4" DR.	1 : 9	1 : 6.5
8196-4	3/4" DR.	1" DR.	1 : 4	1 : 3.3
8194-12	1/2" DR.	1" DR.	1 : 12	1 : 9
8194-16	1/2" DR.	1" DR.	1 : 16	1 : 12
6190	1/2" DR.	3/4" DR.	1 : 3	1 : 3
8190	3/4" DR.	1" DR.	1 : 3	1 : 3

W mm	H mm	L mm	INPUT TORQUE N · m	OUTPUT TORQUE N · m	g
70	78	428	MAX : 303	MAX : 1000	2250
82	97	480	MAX : 231	MAX : 1500	4200
96	111	500	MAX : 758	MAX : 2500	5660
82	110	480	MAX : 222	MAX : 2000	4500
96	134	500	MAX : 208	MAX : 2500	5850
73	84	425	MAX : 500	MAX : 1500	2350
91	113.5	500	MAX : 1000	MAX : 3000	4850
