Torque Wrench-Clicker扭力扳手 Clicker Type- 3/4″, 1″ Drive- Green Steel Handle

The model applied on 3/4″ and 1″ Drive, apply for N.m and ft lbs (Newton-metre, foot-pound)
Clés dynamométrique
Klucz dynamometryczny
Drehmomentschlüssel
Llaves dinamométrica
مفتاح العزم
ประแจวัดแรงบิด
扭力扳手

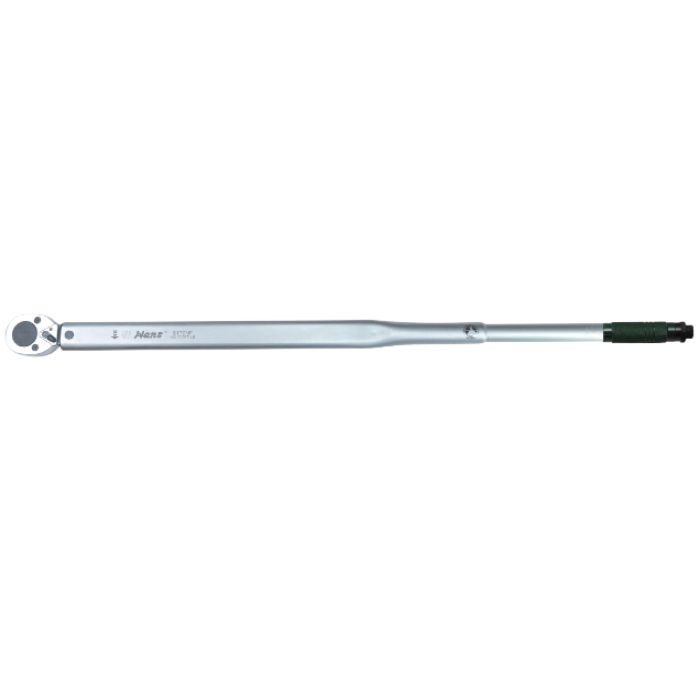

6171Nm/ 6173Nm/ 6172NF/ 6173NF/ 8170Nm/ 8170NF
DIN EN ISO 6789
DIN 3120 – ISO 1174

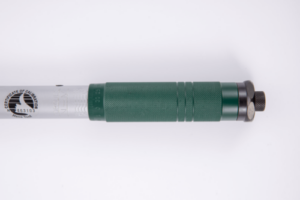

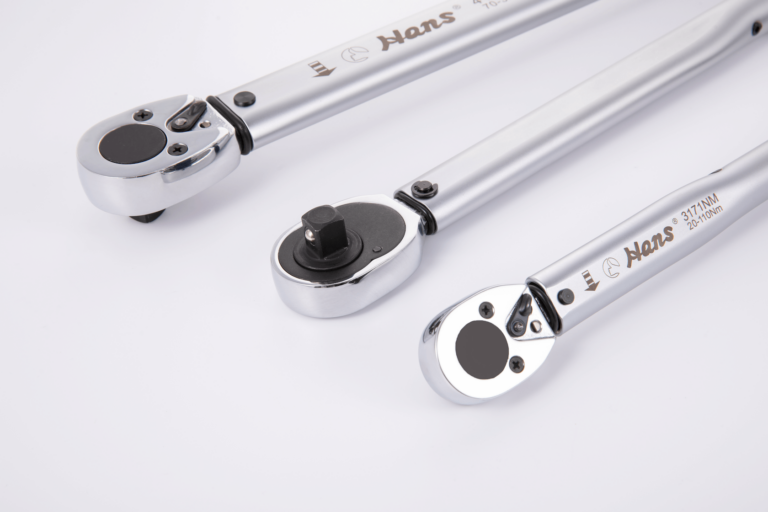

A torque wrench is an essential tool for ensuring that bolts are tightened to the correct specification. They are made from chrome vanadium steel for strength and durability, and have a ratchet head that allows them to be used for clockwise or anti-clockwise torque. The handle is knurled for a good grip, and when the required torque setting is reached, the wrench produces an audible click and a slight release of tension.

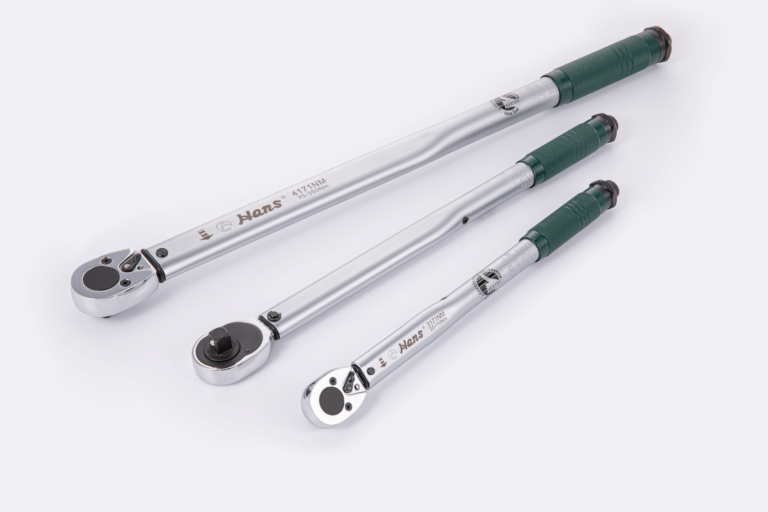

Clicker-type torque wrench is the most commonly used one in the oil and gas industry today. A clicker wrench is an affordable and extremely accurate tool for tightening bolts or nuts. It is not a power tool but a manual method to achieve proper torque, which makes it ideal for assembling equipment in the oil and gas industry. A clicker-type torque wrench is the most commonly used one in the oil and gas industry today.

DRIVE	ITEM NO.	CAPACITY N · m	ITEM NO.	CAPACITY FT-LB	L mm / inch	g
3/4"	6171Nm	140-700	6172NF	100-600	1080 / 42-1/2"	6160
3/4"	6173Nm	140-980	6173NF	100-700	1225 / 47-13/16"	6893
1"	8170Nm	140-980	8170NF	100-700	1230 / 47-13/16"	6893
					BLOW CASE FOR EACH
