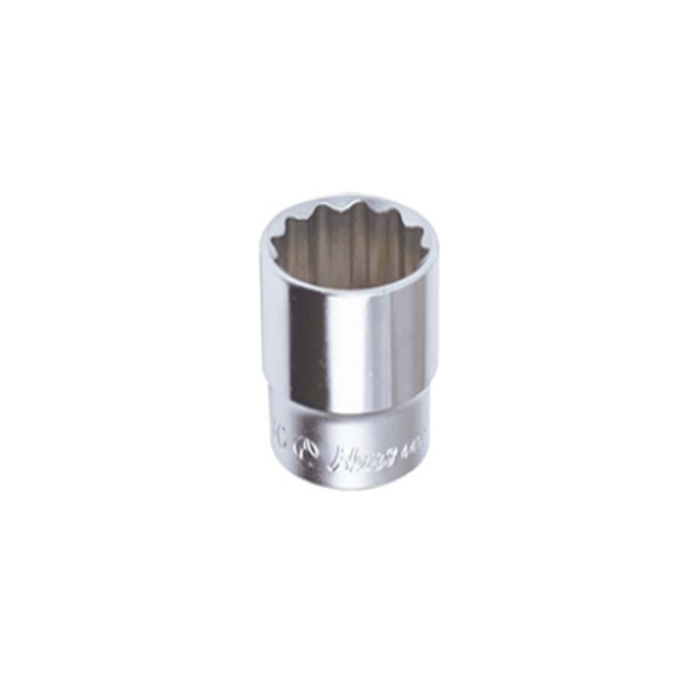

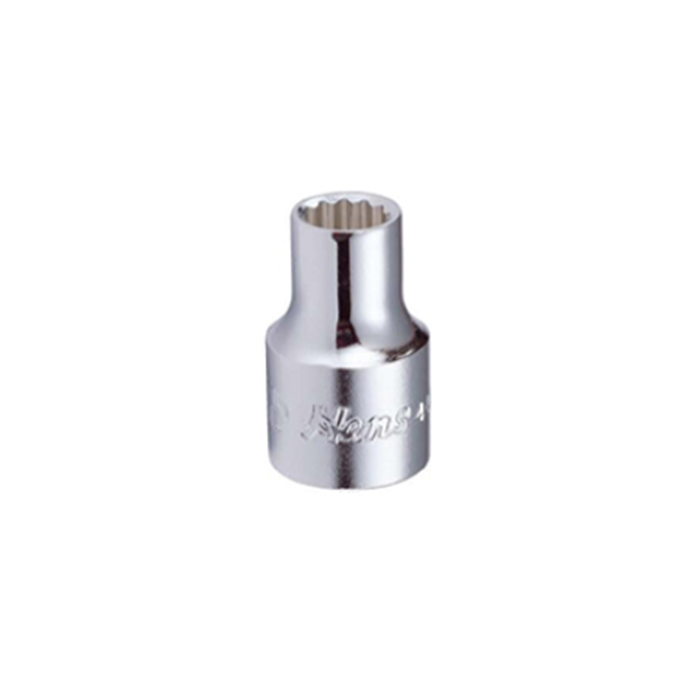

4402M/A-1/2″Drive 手动套筒 Hand Socket (Manual)12 Point
SKU
4402M/A
Categories Socket / Ratchet / Combo (Socket Wrench Set), Socket, Socket-1/2"DR.
Tags 1/2"DR, 12处接触点, 手动套筒
4402M/A-1/2″Drive 手动套筒 Hand Socket (Manual)12 Point
- 1/2″ DRIVE HAND SOCKET (MANUAL) 12 POINT
- Douilles 12 pans
- 12 kątowy długi rękaw
- 12-Winkel-Langarm
- Manga larga de 12 ángulos
- 12 زاوية طويلة الأكمام
- แขนยาว 12 มุม
- DIN 3120, ISO 1174
- DIN 3124, ISO 2725-1
- ASME B 107.5M, ASME B 107.1
- 手動套筒 公制/ 英制 六角-十二角
- An-Lock Drive®
Feature
- An-Lock Drive® (Superb Torque) is built to do one thing: help you get that job done right. has only one thing on its mind: helping you get the job done with ease, safety, and quality. With its many smart features such as reversing levers, stronger grips, and deep-reaching heads, it can get to those difficult places or those hard-to-reach nuts or bolts with incredible precision. Made from Chrome Vanadium-CrV 6140 alloy steel, it is one of the strongest bits in the industry.
4402M (mm) | 4402A (inch) | D1 (mm) | D2 (mm) | L (mm) | g | pcs |
---|---|---|---|---|---|---|
8 | 5/16 | 13.2 | 22 | 37 | 45 | 10 |
9 | 13.9 | 22 | 37 | 45 | 10 | |
3/8 | 14.5 | 22 | 37 | 45 | 10 | |
10 | 15 | 22 | 37 | 45 | 10 | |
11 | 7/16 | 16.3 | 22 | 37 | 45 | 10 |
12 | 15/32 | 17.6 | 22 | 37 | 45 | 10 |
13 | 1/2 | 18.8 | 22 | 37 | 45 | 10 |
14 | 9/16 | 20.4 | 22 | 37 | 50 | 10 |
15 | 19/32 | 21 | 22 | 37 | 50 | 10 |
16 | 5/8 | 23 | 22 | 37 | 65 | 10 |
17 | 21/32 | 24 | 23 | 37 | 65 | 10 |
11/16 | 24 | 23 | 37 | 65 | 10 | |
18 | 25 | 24 | 37 | 65 | 10 | |
19 | 3/4 | 27 | 25.8 | 38 | 80 | 10 |
20 | 25/32 | 28 | 26 | 38 | 80 | 10 |
13/16 | 28 | 26 | 38 | 80 | 10 | |
21 | 30 | 27 | 38 | 95 | 10 | |
22 | 7/8 | 30 | 28 | 40 | 100 | 10 |
23 | 32 | 29 | 40 | 120 | 10 | |
24 | 15/16 | 33 | 30 | 42 | 150 | 10 |
25 | 34 | 32 | 42 | 155 | 10 | |
26 | 1" | 36 | 32 | 42 | 160 | 10 |
27 | 1-1/16 | 37 | 34 | 43 | 195 | 10 |
28 | 38 | 34 | 43 | 195 | 10 | |
29 | 1-1/8 | 40 | 35 | 45 | 210 | 8 |
30 | 1-3/16 | 40 | 36 | 45 | 215 | 8 |
32 | 1-1/4 | 43 | 38 | 45 | 240 | 5 |
33 | 43 | 39 | 47 | 260 | 5 | |
34 | 44 | 40 | 47 | 260 | 5 | |
36 | 48 | 41 | 47 | 300 | 5 |
