可换头扭力扳手 Exchangeable head Torque Wrench- Clicker Type (9×12, 14×18)
Categories Torque Wrench/ Digital Torque Wrench, Torque Wrench
Tags 咔哒扭矩扳手, 扭矩扳手, 视窗显示
可换头扭力扳手 Torque Wrench-Exchangeable head- Clicker Type
- Clés dynamométrique
- Klucz dynamometryczny
- Drehmomentschlüssel
- Llaves dinamométrica
- مفتاح العزم
- ประแจวัดแรงบิด
- 扭力扳手
- 21770GNC/ 31770GNC/ 31771GNC/ 31772GNC/ 41770GNC/ 41771GNC/ 41772GNC/ 41773GNC
- DIN EN ISO 6789
- DIN 3120 – ISO 1174

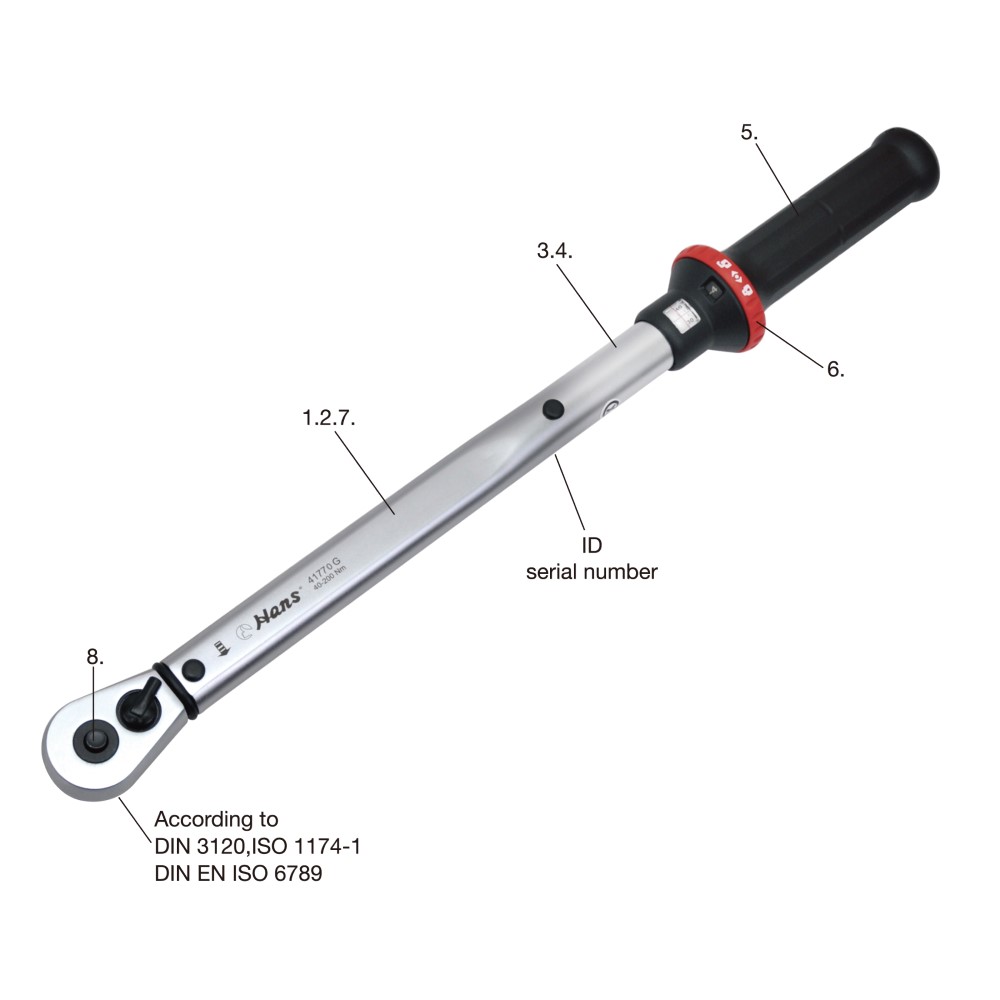

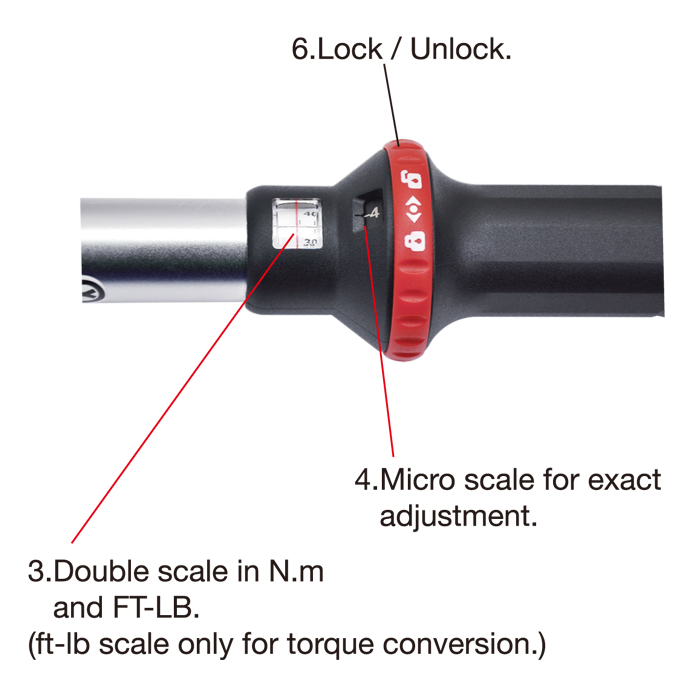

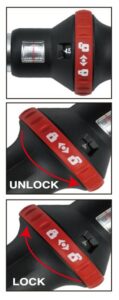

- The trigger lock switch allows for one-handed operation. It comes with a flexible core that ensures durability and light weight, and several attachments are included to cover all common sizes.
- This torque wrench is based on the DIN EN ISO 6789, DIN 3120 and ISO 3120 method for measuring torque. A tactile and audible click lets you know that the desired setting has been achieved. With its easy-to-use trigger and robust, ergonomic body, this wrench is perfect for all users.
ITEM NO. | CAPACITY N · m | CAPACITY FT · LB | L mm/inch | g |
|
---|---|---|---|---|---|
9x12 | 21770GNC | 5-25 | 4-18 | 280/ 11" | 400 |
9x12 | 31770GNC | 10-50 | 8-35 | 334/ 13-9/64" | 700 |
9x12 | 31771GNC | 40-200 | 30-140 | 468/ 18-27/64" | 1200 |
9x12 | 31772GNC | 20-100 | 15-70 | 380/ 15" | 1020 |
14x18 | 41770GNC | 40-200 | 30-140 | 475/ 18-45/64" | 1200 |
14x18 | 41771GNC | 60-300 | 45-220 | 568/ 22-23/64" | 1330 |
14x18 | 41772GNC | 80-400 | 60-290 | 657/ 25-7/8" | 1820 |
14x18 | 41773GNC | 20-100 | 15-70 | 385/ 15-11/64" | 1020 |
BLOE CASE FOR EACH |
