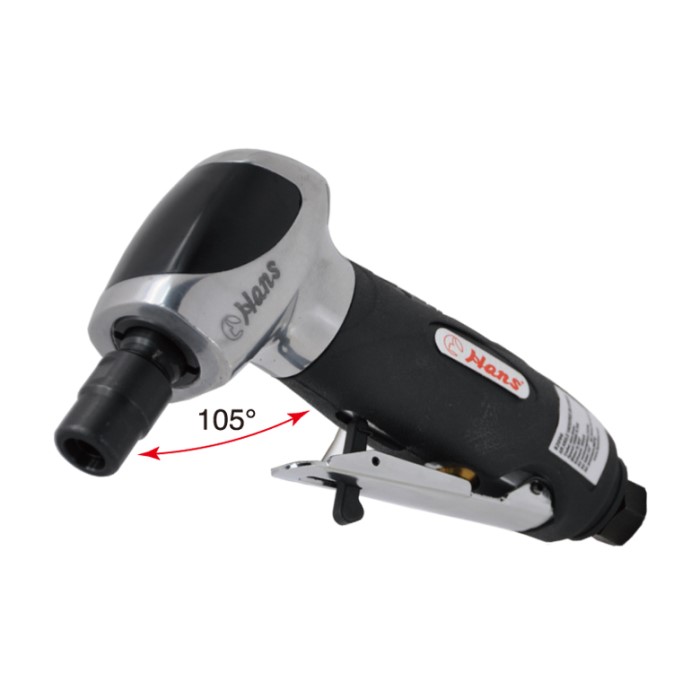

82096-风动研磨机 Angle Die Grinder
82096- 风动研磨机 Angle Die Grinder
- Angle Die Grinder
- Meuleuse coudée, droite
- Szlifierka kątowa i prosta
- Die Grinder-abgewinkelt und gerade
- Amoladora de angular y recta
- جلاخة قوالب بزاوية ومستقيمة
- เครื่องบด – มุมเอียงและมุมขวา
- 氣動帶柄內徑研磨機
- 82096/ 82096-2
- Impact Wrench- Pneumatic Power Instruction
Information
What is the difference between an end grinder and a die grinder?
In a nutshell, a die grinder is typically smaller and has several different attachments that can help you cut, sand, polish, and various other things. The angle grinder is a larger and often heavier tool that uses a rotating wheel to grind, sand, or cut larger materials.
ITEM NO. | COLLECT SIZE | MOTOR H.P. | EXHAUST | FREE SPEED R.P.M. | AVG.DLR CONSUMPTION CFM |
---|---|---|---|---|---|
82096 (105°) | 6mm | 0.5 | REAR | 15000 | 7 |
82096-2 (105°) | 1/4" | 0.5 | REAR | 15000 | 7 |
82907 (90°) | 1/4" | 0.3 | REAR | 19000 | 10 |
82907-6 (90°) | 6mm | 0.3 | REAR | 19000 | 10 |
82901-03 | 1/4" | 0.3 | REAR | 25000 | 10 |
82901-036 | 6mm | 0.3 | REAR | 25000 | 10 |
82901-03N | 1/4" | 0.3 | REAR | 25000 | 10 |
82901-036N | 6mm | 0.3 | REAR | 25000 | 10 |
82901-05 | 1/4" | 0.5 | REAR | 22000 | 12.5 |
82901-056 | 6mm | 0.5 | REAR | 22000 | 12.5 |
82901-05N | 1/4" | 0.5 | REAR | 22000 | 12.5 |
82901-056N | 6mm | 0.5 | REAR | 22000 | 12.5 |
ITEM NO. | AIR PRESSURE BAR (PSI) | AIR INLET INCH | AIR HOSE ID | OVERALL LENGTH inch/mm | KGS | pcs |
---|---|---|---|---|---|---|
82096 (105°) | 90 PSI 6.2 BAR | 1/4 | 1/4 | 7.2"/ 180 | 0.55 | 20 |
82096-2 (105°) | 90 PSI 6.2 BAR | 1/4 | 1/4 | 7.2"/ 180 | 0.55 | 20 |
82907 (90°) | 90 PSI 6.2 BAR | 1/4 | 1/4 | 6.4"/ 160 | 0.75 | 20 |
82907-6 (90°) | 90 PSI 6.2 BAR | 1/4 | 1/4 | 6.4"/ 160 | 0.75 | 20 |
82901-03 | 90 PSI 6.2 BAR | 1/4 | 1/4 | 6.2"/ 155 | 0.6 | 20 |
82901-036 | 90 PSI 6.2 BAR | 1/4 | 1/4 | 6.2"/ 155 | 0.6 | 20 |
82901-03N | 90 PSI 6.2 BAR | 1/4 | 1/4 | 5.6"/ 140 | 0.4 | 20 |
82901-036N | 90 PSI 6.2 BAR | 1/4 | 1/4 | 5.6"/ 140 | 0.4 | 20 |
82901-05 | 90 PSI 6.2 BAR | 1/4 | 1/4 | 7"/ 175 | 0.7 | 20 |
82901-056 | 90 PSI 6.2 BAR | 1/4 | 1/4 | 7"/ 175 | 0.7 | 20 |
82901-05N | 90 PSI 6.2 BAR | 1/4 | 1/4 | 7"/ 175 | 0.7 | 20 |
82901-056N | 90 PSI 6.2 BAR | 1/4 | 1/4 | 7"/ 175 | 0.7 | 20 |
